The bucket-type skimmer operates reliably under the following marine conditions:
Designed for stationary oil recovery operations: during ice-free periods from boom-enclosed water surfaces, and during ice periods from open water between ice floes.
Marine Oil Spill Response: Advanced Open-Water Recovery Systems
In challenging environments like the North Atlantic or Arctic oceans, managing heavy crude oil spills requires rapid response to prevent critical environmental damage. During these operations, specialized deck machinery is essential. The bucket-type oil skimmer, engineered by Izhora Hydrosystems, represents a highly technical solution for high-viscosity oil recovery.
Engineering for Extreme Marine Environments
Oil Spill Response (OSR) operations must proceed effectively under severe environmental loads. Standard oil skimmers often fail due to continuous sea water splashing, high shipboard vibration, hull inclination, and severe wind pressure.
Ice-covered waters present additional technical challenges. When spilled oil mixes with slush and ice floes in open water channels, standard suction or weir-type recovery systems frequently clog and fail. Collecting high-viscosity oil at ambient air temperatures down to -10 °C requires robust structural design and mechanical handling capable of processing heavy, semi-solid hydrocarbons.

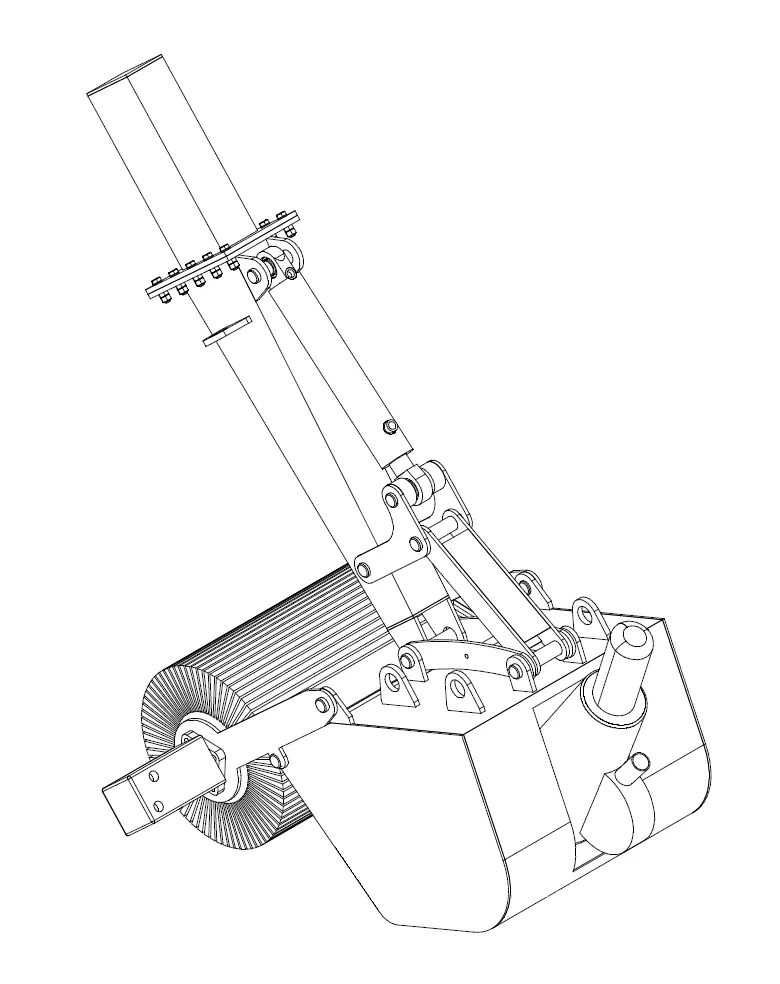

Mechanical Recovery Principle: Engineering Design
The equipment utilizes a combined mechanical and hydraulic operating principle. The bucket-type skimmer is suspended from a marine crane boom to interface directly with the oil slick. Efficiency is achieved through a built-in brush-disc shaft; rotating brushes recover oil from the water surface, and dedicated scrapers discharge it directly into the steel collection hopper.
The hopper houses the core component of the system: a heavy-duty screw pump. Engineered for demanding operations, the pump features a water injection system to manage high-viscosity oil. Injecting water into the discharge line creates an annular water jacket that significantly reduces friction losses, enabling the transfer of heavy oil products to the vessel’s cargo tanks at a rated flow of 20 m³/h.
Hazardous Area Engineering and Operational Features
Safety aboard tankers and offshore supply vessels is critical. Consequently, all electrical equipment features IP56 ingress protection, and the entire system complies with explosion-proof and intrinsically safe design standards. This configurations ensures safe operation in high gas-vapor concentration areas by mitigating electrical ignition risks.
The operator remains in a safe zone, using a portable remote control unit to ensure precise hopper positioning and variable pump speed adjustment. The equipment operates reliably with standard AUP hydraulic fluid. For efficient deck management, the 200 kg unit is compactly stowed below deck when not in operation.
Industrial Specifications
The technical parameters of the system ensure long-term operational durability. A 10 kW hydraulic drive system maintains stable output torque even when operating in heavy slush ice. The standard scope of supply is comprehensive, including reinforced hose assemblies and a spare parts kit (comprising tools and accessories) structured for two years of continuous operation.
A New Standard for Open-Water Operations
In the current regulatory environment, the bucket-type oil skimmer provides shipowners with a reliable mitigation strategy against unpredictable environmental risks. As global maritime environmental standards become increasingly stringent, deploying this equipment converts critical emergency response into a highly structured, planned operational procedure. This advanced system demonstrates how robust engineering can effectively resolve the complex operational challenges of the global ocean, ensuring dependable marine environmental protection in all latitudes.
| Component | Qty |
|---|---|
| Hydraulic motor-driven cargo oil screw pump | 1 pc. |
| Hydraulic hose assembly kit | 1 set |
| Cargo oil transfer hose assembly kit | 1 set |
| Portable remote control unit for bucket-type skimmer | 1 pc. |
| Bucket actuation hydraulic cylinder | 1 pc. |
| Brush-disc oil recovery shaft | 1 pc. |
| Hydraulic drive for oil recovery shaft pump | 1 pc. |
| Oil collection hopper with scraper device | 1 pc. |
| Support bracket for bucket-type skimmer | 1 pc. |
| Local control panel (option) | On request |
| Additional control stations (option) | On request |
| Hydraulic power unit (option) | On request |
| Parameter | Value |
|---|---|
| Model type | Bucket-type skimmer |
| Drive type | Hydraulic |
| Cargo oil collection capacity | 20 m³/h |
| Rated flow of skimmer hydraulic motor | 10 to 30 l/min |
| Nominal pressure | 21 MPa |
| Maximum power | 10 kW |
| Cargo oil pump type | Heavy-duty submersible screw pump |
| Estimated weight | 200 kg |
| Dimensions | To be confirmed during detailed design phase |
| Certificate | Manufacturer’s certificate |
| Explosion-proof rating | 2 EX II T 4 |
Manufacturer’s standard spare parts kit configured for 2 years of operation.
| Document | Qty |
|---|---|
| Product passport | 1 |
| Operating manual | 1 |
| Installation instructions | 1 |
Manufacturer’s certificate – 1 copy.
Izhora Hydrosystems LLC
12 months from delivery date, unless otherwise specified in the contract.
