The hangar doors and helicopter handling system operate under the following conditions:
When secured for sea, the hangar doors and helicopter handling system maintain their operational integrity after long-term exposure to:
The equipment climate version is OM1 according to GOST 15150-69.
The hangar doors ensure, when the door leaves are open, the transportation of Mi-8 (Mi-38) type helicopters from the hangar to the helipad and back, and, when the door leaves are closed, personnel access to the hangar.
The helicopter handling system ensures the movement/transportation of Mi-8 (Mi-38) type helicopters from the helipad to the hangar and back.
Synergy in Action: How Hangar Doors and Helicopter Handling Systems Work Together
The task of smoothly moving an aircraft from a protected hangar to the helipad and back resembles a complex dance where every movement must be precise. The key partners in this process are the hangar doors and the helicopter handling system Their coordinated operation ensures not only prompt response but also maximum safety for both equipment and personnel.
Intelligent Control of Complex Mechanisms
Modern hangar doors and helicopter handling systems are not just mechanical structures, but smart systems. They are operated from centralized control stations, allowing the operator to monitor the entire cycle: from opening the massive door leaves to the pinpoint positioning of the helicopter inside the hangar. This integration eliminates human error and significantly speeds up the process.
Durability and Reliability under Extreme Conditions
The nature of operation on marine vessels imposes exceptional durability requirements. Hangar doors and helicopter handling systems are designed to withstand continuous exposure to aggressive saline environments, wind loads, and ship motion. The use of specialized materials and engineering solutions guarantees that the equipment will operate reliably even far from shore.
Automation for Flawless Safety
The most critical aspect is ensuring safety. The helicopter handling system is equipped with sensors and automatic shutdown systems that prevent overload or abnormal movement. The hangar doors feature protective loops that block closing if an obstruction is detected. The implementation of such automated protocols minimizes risks.
Unified Technological Complex
Thus, the operational efficiency of shipborne aviation depends on how harmoniously the hangar doors and the helicopter handling system interact. Designing them as a unified complex, rather than separate devices, is the key to creating reliable and durable systems.
Experience and Expertise in Creating Integrated Solutions
The development and manufacture of complex marine systems, including hangar doors and helicopter handling systems, is carried out by the Russian company Izhora Hydrosystems LLC. The accumulated experience in specialized machinery and hydraulics enables the company to create integrated systems in which the hangar doors and the helicopter handling system operate as a single, dependable mechanism that complies with strict marine operation requirements and safety standards.

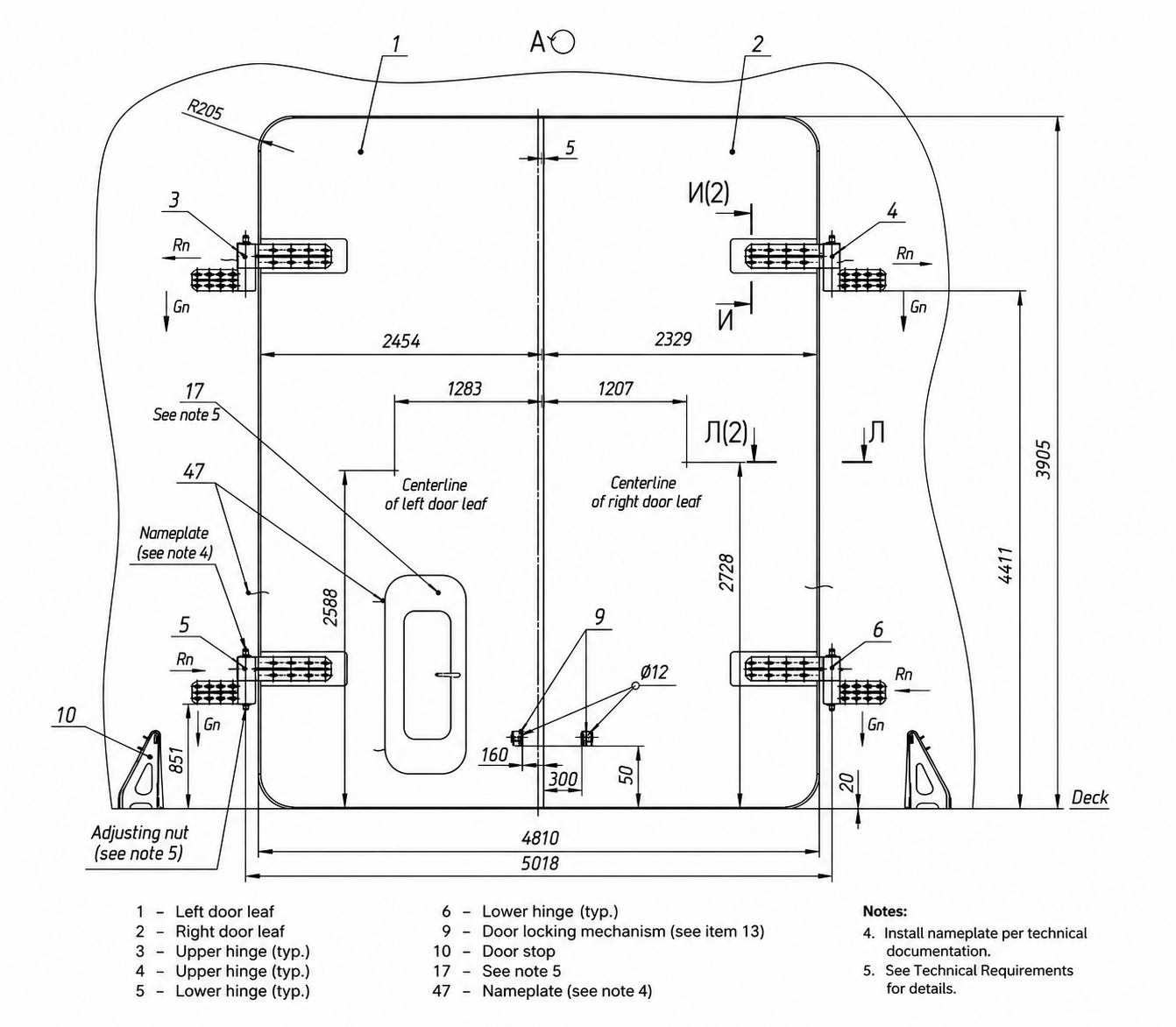

| Component | Quantity |
|---|---|
| Hangar door left leaf with personnel access door | 1 pc. |
| Hangar door right leaf | 1 pc. |
| Hangar door non-adjustable hinges | 1 set |
| Hangar door adjustable hinges | 1 set |
| Hangar door weld-on coaming sections | 1 set |
| Hangar door removable coaming sections | 1 set |
| Hangar door opening angle limit stops | 1 set |
| Hangar door dogging device | 1 set |
| Hangar door hydraulic cylinders | 1 set |
| Hydraulic power unit with electric drive and manual pump (shared with HTV) | 1 pc. |
| Hangar door control panel | 1 pc. |
| Hydraulic manifold block (shared with HTV) | 1 pc. |
| Control cabinet (shared with HTV) | 1 pc. |
| Parameter | Value |
|---|---|
| Type | Electro-hydraulic double-leaf door |
| Clear opening size (W x H), min. | 5400 x 7200 mm |
| Leaf opening angle, min. | 100° |
| Opening time, max. | 90 s |
| Total weight, max. | 6200 kg |
Manufacturer’s standard SPTA kit for one year of operation.
| Document | Quantity |
|---|---|
| Logbook/Passport | 1 |
| Technical description | 1 |
| Operating instructions | 1 |
| Installation instructions | 1 |
| Diagnostics and repair instructions | 1 |
| Component description | 1 |
| Drawings with specifications | 1 |
| SPTA list | 1 |
The helicopter hangar door and the helicopter handling system are certified by the Russian Maritime Register of Shipping.
| Component | Quantity |
|---|---|
| HHS hydraulic winch with wire rope, right-hand configuration | 1 pc. |
| HHS hydraulic winch with wire rope, left-hand configuration | 1 pc. |
| HHS wheel chock with locking mechanism | 1 set |
| HHS wheel chock | 1 set |
| HHS rollers complete with deck sockets | 1 set |
| Helicopter towing/handling arrangement | 1 set |
| HHS local control panel | 1 pc. |
| HHS connection and storage cabinet for portable control panel | 1 pc. |
| HHS portable control panel with 25 m cable | 1 pc. |
| Parameter | Value |
|---|---|
| Drive | Two hydraulic winches with towing wire ropes |
| Pulling force, min. | 5.5 t |
| Helicopter handling speed | 0.2 m/s (12 m/min) |
| Travel distance | 40 m |
| Total weight, max. | 2500 kg |
| Power consumption (HHS and hangar door drive), max. | 53 kW |
Manufacturer’s standard SPTA kit for one year of operation.
| Document | Quantity |
|---|---|
| Logbook/Passport | 1 |
| Technical description | 1 |
| Operating instructions | 1 |
| Installation instructions | 1 |
| Diagnostics and repair instructions | 1 |
| Component description | 1 |
| Drawings with specifications | 1 |
| SPTA list | 1 |
The equipment is certified by the Russian Maritime Register of Shipping.
Izhora Hydrosystems LLC
12 months from the date of shipment, unless otherwise provided by the contract.
