The marine ramp is designed for operation on a medium-haul, zero-emission electric passenger/vehicle ferry.
The equipment ensures reliable operation under shipboard vibration and intermittent sea water splashing.
Ambient air temperature:
The design ensures safe operation at a vessel heel angle of not less than 6° and a trim of not less than 3°.

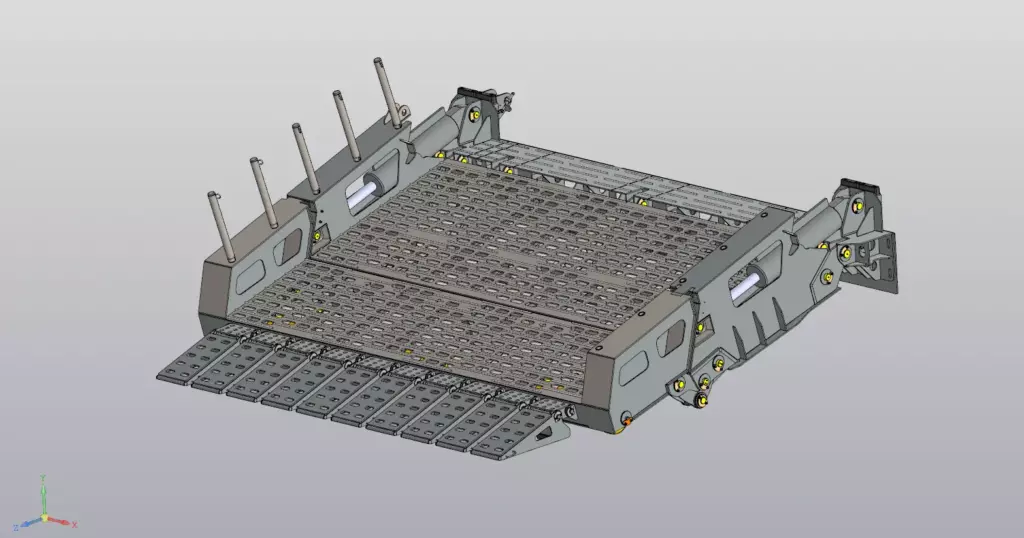

The hydraulic marine ramp is designed to enable the embarkation and disembarkation of various types of vehicles, as well as passenger transit between the quay and the vessel.
Marine Ramps: Key Elements of Vessel Infrastructure
Marine ramps play a critical role in establishing the connection between a vessel and the shore. They enable the transit of vehicles, cargo, and personnel, making them indispensable for the operation of ferries, landing craft, and auxiliary vessels. The quality and performance of the ramp directly determine the efficiency and safety of all loading and discharge operations.
Engineering Precision and Functionality
Modern ramps are engineered to match specific vessel designs and operational requirements. The structure must withstand dynamic loads, resist marine corrosion, and operate reliably under all weather conditions. To achieve this, materials are selected to retain structural integrity and strength despite continuous exposure to sea water.
Advanced Manufacturing Solutions
Today, a marine ramp is a sophisticated engineering system rather than a simple steel structure. The integration of hydraulic drives ensures smooth positioning and control, optimizing crew operations. Specialized heavy-duty surface treatments prevent slipping and increase vehicle transit safety.
Operational Role and Efficiency
Reliable ramp performance is essential during maneuvers in adverse weather conditions and when mooring at unequipped shorelines. The speed and safety of cargo handling operations depend entirely on its positioning accuracy and structural stability. Consequently, during vessel design, this equipment is integrated as a core component to optimize overall voyage efficiency.
Izhora Hydrosystems Production
Izhora Hydrosystems LLC specializes in the manufacturing of various types of marine ramps. Equipment development incorporates specific project parameters, operating conditions, and customer requirements. This approach ensures seamless integration into the vessel structure and stable performance throughout the equipment lifecycle.
| Component | Quantity |
| Welded steel folding hoisting load-bearing structure (ramp), consisting of 2 hinged sections | 1 |
| Handrails | 1 |
| Hydraulic power unit (HPU) comprising: valves, sensors, filters, oil level indicator, drain/filler neck, emergency drive (hand pump), structural steel tank, pump with electric motor (max. 7.5 kW, 380 V AC, 3-phase, 50 Hz) | 1 |
| Ramp pivoting hydraulic cylinders | 2 |
| Ramp folding hydraulic cylinders | 2 |
| Hydraulic hoses, pipes, and fittings arranged on the equipment | 1 set |
| HPU distribution switchboard with indicators, control buttons, and AMCS alarms | 1 |
| Local control panel | 1 |
| Remote control panel | 1 |
| Spare parts, tools, and accessories (SPTA) kit for hydraulics and electrics (supplier standard) | 1 set |
Notes on Scope of Supply:
| Parameter | Value |
| Ramp width | 4 m |
| Extended length | 4 m |
| Vertical clearance in stowed position | max. 2.2 m above deck level |
| Opening angle | up to 105° relative to the vessel deck |
| Relative deflection during cargo operations | max. 0.004L |
| Hoisting capacity | min. 1.5 times the ramp weight |
| Operating temperature (deck) | –20°C to +40°C |
| Operating temperature (ship spaces) | 0°C to +40°C |
| Power supply | 3-phase, 380 V, 50 Hz |
| Ingress protection rating | IP56 / IP44 |
| Hydraulic fluid | MGE-10A OST 38.01281-82 |
| Fluid cleanliness class | min. class 12 according to GOST 17216-71 |
Supplier standard for 1-year operation — 1 set.
| Document Title | Quantity |
| Product passport | 1 |
| Operating manual | 1 |
| Electrical schematic | 1 |
| Hydraulic schematic | 1 |
| Installation and assembly drawing package | 1 set |
| Certificate of conformity | 1 |
Izhora Hydrosystems LLC
12 months from the delivery date, unless otherwise specified in the contract.
Email: contact@i-hydro.tech
Phone: +7 (812) 339-61-68
