Marine Knuckle Boom Crane, 5t capacity (Technical supply specification)


1. General Information (Operating Conditions)

The marine crane-manipulator ensures reliable performance under offshore and marine environmental conditions:

  • Ambient air temperature: +25°C with 80% relative humidity in summer; -30°C with wind speeds up to 25 m/s and 85% relative humidity in winter.
  • Seawater temperature: From -2°C to +32°C.
  • Vibration: Compliance with onboard hull vibration levels.
  • Exposure: Periodic seawater splashing and spray on components.
  • Heel: Up to 5° port or starboard.
  • Trim: Up to 2° bow or stern.

2. Purpose

The marine crane-manipulator is designed for installation on various vessel types to perform lifting operations, including handling general cargo, ship stores, and provisions. The crane ensures safe operations at static list angles up to 5° port/starboard and trim up to 2° bow/stern at minimum vessel draft.

Capabilities:

  • Onboard cargo loading and discharging with a capacity up to 5 t at 15 m outreach.
  • Container handling operations.
  • Subsea lifting operations to recover cargo and underwater equipment (unmanned assets, excluding subsea operations support).

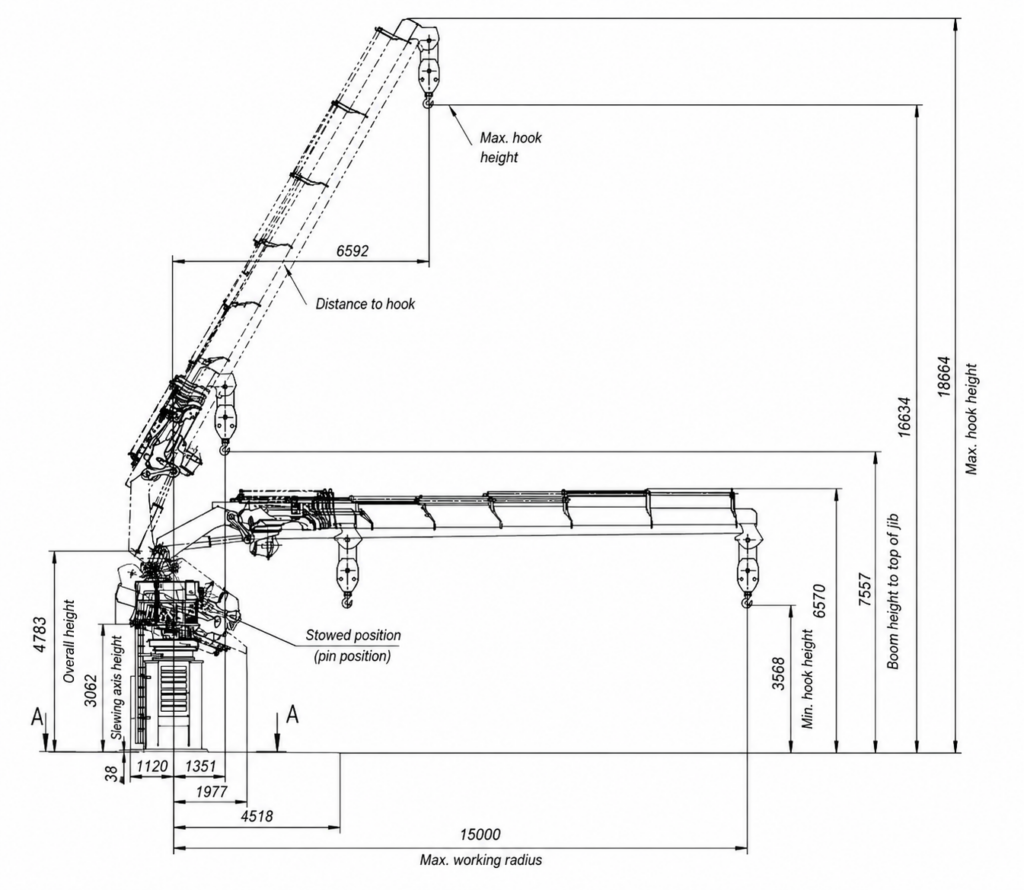

5 t Marine Crane-Manipulator Side View General Arrangement Drawing
5 t Marine Crane-Manipulator Side View General Arrangement Drawing

About

Marine Knuckle Boom Cranes: Modern Solutions for Maritime Operations

The marine knuckle boom crane is specialized lifting equipment engineered for installation on various vessel types. It handles a wide range of operations, from loading provisions and stores to lifting heavy cargo and equipment from quaysides or the water. The crane structure is fully adapted to continuous marine environments, ensuring stable performance even under harsh operating conditions.

Design Features and Application

Modern marine knuckle boom cranes feature high maneuverability and precise load positioning. Utilizing a slewing column and a telescopic boom system, the equipment provides optimal coverage across deck areas and surrounding waters. This capability is critical for confined onboard spaces requiring precise and safe handling operations.

This equipment is utilized on cargo and auxiliary vessels, as well as on research, fishing, and expedition vessels. The capability to operate under list and trim conditions makes the marine knuckle boom crane a versatile tool for maritime operations.

Operational Advantages

Resistance to environmental exposure is a key advantage of these knuckle boom cranes. They operate reliably across high and low ambient temperatures, high wind speeds, structural vibrations, and continuous seawater exposure. The hydraulic drive system maintains constant operating speeds and smooth movement during heavy load handling.

The compact design prevents interference with other deck equipment, while the optimized layout simplifies maintenance. This makes the marine knuckle boom crane the optimal solution for space-restricted vessels.

Manufacturing and Quality Assurance

Marine knuckle boom cranes are manufactured in compliance with the Russian Maritime Register of Shipping (RMRS) rules and regulations. Primary focus is placed on hydraulic system reliability, structural steel quality, and corrosion protection.

The equipment is manufactured by Izhora Hydrosystems LLC, a company specialized in the design and supply of marine equipment. All products comply with applicable standards and are delivered with the required certification.

Relevance to the Modern Fleet

Due to their versatility and reliability, marine knuckle boom cranes are utilized on a wide range of vessels, including transport, service, and research fleets. This equipment accelerates loading and discharging processes, enhances operational safety, and automates crew operations.


3. Scope of Supply

3.1 5 t Marine Knuckle Boom Crane

3.1.1 Bill of Materials (BOM)

ComponentQuantity
Base1
Column1
Inner boom1
Outer boom / Outer boom assembly1
Electrical installation1
Slewing drive1
Winch1
Inner boom cylinder1
Extension cylinder1
Hook assembly1
Local control console1
Control cabinet1
Hydraulic installation1
Hydraulic power unit (HPU)1
5 t Marine Knuckle Boom Crane Top View General Arrangement Drawing
5 t Marine Knuckle Boom Crane Top View General Arrangement Drawing

3.1.2 Technical Data

ParameterValue
Safe Working Load (SWL), max.5,000 kg (at 1.0 m outreach)
Outreach1.35 – 15.0 m
Hoisting/lowering speed10 m/min
Lowering depth (from crane foundation level)Min. 25.0 m
Winch drive typeHydraulic
Slewing angleContinuous
Slewing speed (unloaded)Min. 1 rpm
Control systemLocal control console on the slewing column + cable remote control and wireless control
Power supply3 phases, 380 V, 50 Hz
HPU electric motor power (nominal)55 kW
Crane weight (approximate)17,000 kg

3.1.3 Spare Parts Kit

Manufacturer’s standard kit for 3-year operation — 1 set.

3.1.4 Documentation

Document TitleQuantity
Technical passport1
Installation and operating instructions1
Spare parts list1
Factory acceptance test (FAT) report1
Onboard testing program and procedure1
Operating manual1

3.1.5 Certification

RMRS Certificate (RS Certificate) Form 6.5.30 — 1 copy.

Extract from the Register of Russian Industrial Products in compliance with the Decree of the Government of the Russian Federation No. 719 “On Confirmation of Industrial Production”.


4. Additional Requirements

  • All electrical equipment features an IP56 protection class.
  • The coating system and color shall be subject to the Customer’s approval.
  • Preservation coatings ensure an indoor storage life of 12 to 18 months.
  • The hydraulic system operating fluid is AUP hydraulic oil.
  • The fluid cleanliness level according to GOST 17216-71 shall be min. Class 12.
  • Power supply cables are equipped with mating connectors.

5. Manufacturer

Izhora Hydrosystems LLC


6. Warranty Period

12 months from the date of shipment, unless otherwise specified in the contract
