Marine stiff boom crane, 10t capacity (Technical supply specification)


1. General Data (Operating Conditions)

The stiff boom crane ensures reliable marine operation under the following conditions:

  • Design ambient temperature: +45°C with 60% humidity in summer; -40°C with wind speeds up to 25 m/s in winter (design temperature for structural steelwork is -40°C).
  • Seawater temperature range: from +32°C to -2°C.
  • Shipborne vibration.
  • Intermittent sea spray on crane components.
  • Heel angles: up to 5° port/starboard.
  • Trim angles: up to 2° bow/stern.

2. Purpose

The equipment is designed for installation on various types of ships and vessels.

The crane is intended for lifting operations, including handling general cargo, ship stores, and provisions. Operations are permitted at static heel angles up to 5° port or starboard and trim angles up to 2° bow or stern at minimum vessel draft.

Stiff boom crane 10t general arrangement drawing, side view
Stiff boom crane 10t general arrangement drawing, side view

About

Stiff Boom Cranes: Modern Solutions for Shipbuilding

Stiff boom cranes offer advanced performance to streamline loading and unloading operations on marine vessels. The robust design ensures reliable operation in harsh marine environments, delivering both safety and efficiency during lifting operations. These cranes are essential assets for various vessel configurations.

Versatile Application

Modern stiff boom cranes are engineered for a wide range of onboard operations. They facilitate efficient handling of general cargo, ship stores, provisions, and other materials while maintaining safe crew operations. High-precision control ensures optimal usability on both large and small vessels.

Advanced Materials and Design

Stiff boom cranes are engineered with a focus on structural integrity and advanced components. All assemblies are designed for high strength and environmental resistance. The materials used ensure extended service life and reliability in marine conditions, while the service-friendly design simplifies operation and maintenance.

Control Technologies

Stiff boom cranes feature modern control systems for safe and efficient operation. Local and remote control panels provide precise handling, while hydraulic and electric drives ensure smooth movement and reliable load control. This delivers both optimal functionality and operational convenience for daily shipboard tasks.

Reliability and Safety

Stiff boom cranes are engineered for high reliability and safety. All equipment undergoes stringent quality control and testing in compliance with international standards. This ensures risk-free operations for crew and cargo under diverse conditions, providing vessel owners with long-term operational confidence.

Manufacturing in Russia

Stiff boom cranes are manufactured in Russia by Izhora Hydrosystems LLC, combining modern technologies with high quality standards. The equipment delivers durability, safety, and efficiency, and can be fully customized to meet specific customer requirements.


3. Scope of Supply

3.1 Stiff boom crane 10t

3.1.1 Component list

ComponentQuantity
Base1
Column1
Inner boom1
Telescopic boom segment1
Electrical installation1
Slewing gear1
Winch1
Inner boom cylinder1
Extension cylinder1
Hook block1
Local control panel1
Control cabinet1
Hydraulic installation1
Hydraulic power unit (HPU)1

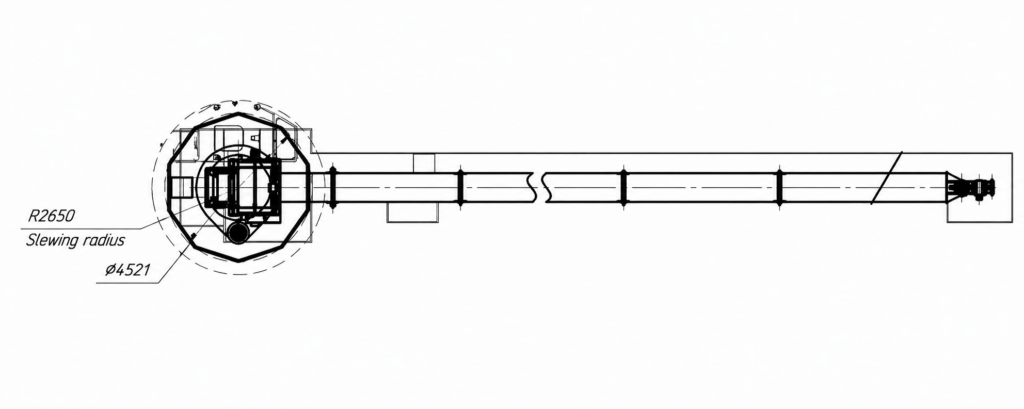

Stiff boom crane 10t general arrangement drawing, top view
Stiff boom crane 10t general arrangement drawing, top view

3.1.2 Main Parameters

ParameterValue
Safe Working Load (SWL), max., kg10000
Outreach, m20
Hoisting/lowering speed, m/min10
Lowering depth, m (from vessel foundation level)20
Winch drive typeHydraulic
Slewing angle, deg.Continuous
Slewing speed without load, rpmMin. 1
Crane controlFrom cabin
Power supply3-phase, 380 V, 50 Hz
Crane weight, kg9000
Operating conditions (crane in operation)— Constant vessel heel to any side: up to 5°— Constant vessel trim bow or stern: up to 2°— Wind pressure: max. 400 Pa— Shipborne vibration
Operating conditions (crane in stowed position)— Ambient temperature: from -50°C to +50°C— Vessel heel: up to 15°— Vessel trim: up to 5°— Wind pressure: max. 2000 Pa— Shipborne vibration

3.1.3 Spare Parts (Sparing)

Standard manufacturer’s spare parts kit for 3 years of operation — 1 set.

3.1.4 Documentation

DocumentQuantity
Logbook / Data sheet1
Installation and Operating Manual1
List of spare parts1
Factory acceptance test (FAT) report1
Onboard testing program and procedure1

3.1.5 Certification

RMRS Certificate (RS Product Certificate) Form 6.5.30 — 1 copy


4. Additional Requirements

  • All electrical equipment features IP56 protection class.
  • All materials are selected for resistance to specified operating temperatures (-40°C to +45°C).
  • Minimum survival temperature (stowed position): -50°C.
  • Coating system: specification and color to be agreed with the Customer.
  • Preservation coatings ensure an indoor storage life of 12–18 months.
  • Hydraulic fluid: AUP.
  • Fluid cleanliness class according to GOST 17216-71: min. Class 12.
  • Power supply cables are equipped with mating connectors.
  • Equipment is delivered with RS documentation confirming capability for operation at -40°C without additional heating systems.
  • Packaging ensures safe handling via crane or forklift, suitability for road transport, and sheltered outdoor storage.

5. Manufacturer

Izhora Hydrosystems LLC


6. Warranty Period

12 months from the date of shipment, unless otherwise specified in the contract.
