The telescopic LARS is designed for reliable operation under the following sea state conditions:
The telescopic LARS operates in conjunction with a winch to deploy and recover equipment over the side or stern of the vessel.
Overhead Telescopic LARS: Overview of Modern Maritime Equipment
In modern maritime operations, precision, reliability, and mobility of equipment are critical. Among the systems that enable crews to perform complex shipboard tasks, the overhead telescopic Launch and Recovery System (LARS) occupies a key position. This equipment ensures safe deployment and recovery of payloads, facilitates operations with various tools, and integrates seamlessly with the vessel’s hydraulic systems.
Versatility and Adaptability
The overhead telescopic LARS features high adaptability to diverse operating conditions. It operates reliably across a wide temperature and humidity range, withstanding shipboard vibration and seawater exposure. This resilience enables its application in a broad spectrum of marine operations, from scientific research to routine vessel maintenance.
A distinctive design feature is the telescopic boom arrangement equipped with a sheave system and a swivel head. This configuration ensures smooth and safe umbilical management, minimizing manual intervention and increasing operational efficiency.
Safety and Operational Convenience
The equipment is engineered to comply with modern safety standards. Automatic load limiters prevent overload conditions, while ergonomic control panels allow the operator to manage the boom from a safe distance. Additionally, an emergency manual override ensures the system can be brought to a safe stowed position under any unforeseen circumstances.
Hydraulic systems equipped with proportional valves and pilot-operated check valves guarantee smooth movement and precise holding in intermediate positions, increasing predictability and safety during payload handling.
Application and Technical Value
The overhead telescopic LARS supports a wide range of operations, from payload recovery to the handling of complex subsea mechanisms and scientific instruments. Its design combines high operational efficiency with minimized risks to the crew and equipment.
Izhora Hydrosystems LLC designs and manufactures these systems in full compliance with current maritime regulations. High quality standards, reliable operation, and user-friendly control interfaces position the overhead telescopic LARS as a critical asset in modern marine engineering.
| Component | Quantity |
| Telescopic boom assembly | 1 pc. |
| Portable control panel | 1 pc. |
| Hydraulic system filling/draining tool kit | 1 set |
| Control cabinet | 1 pc. |
| Control panel | 1 pc. |
| Electrical equipment (integrated into control cabinets) | 1 set |
| Mating connections for shipboard hydraulic system integration | 1 set |
| Manufacturer’s standard spare parts | 1 set |
| Hydraulic schematic and connection diagram | 1 set |
| Electrical schematic with power supply parameters | 1 set |
| Technical description and operating instructions | 1 copy |
| Installation instructions | 1 copy |
| Nameplates, warning signs, and labels | 1 set |
| Counterflanges for piping connection | 1 set |
| Parameter | Value |
| Model type | Telescopic boom |
| Safe Working Load (SWL) | 7 t |
| Umbilical/wire rope diameter | 12 mm |
| Sheave diameter | 600 mm |
| Nominal hydraulic pressure | 25 MPa |
| Weight (including electrical and hydraulic equipment) | 14,400 kg |
| Maximum outboard outreach | 3.6 m |
| Boom stroke (extension) | 6 m |
| Installation height | 5.4 m |
| Overall height with docking head | 2.55 m |
| Duty cycle | Moderate duty, intermittent factor (IF) 25% |
| Portal color | To be specified |
| Testing | Factory acceptance test (FAT) |
The standard manufacturer’s spare parts kit is supplied for two years of operation.
| Document Title | Remarks |
| Product data sheet / Passport | 1 copy |
| Installation instructions | 1 copy |
| Operating instructions | 1 copy |
| Spare parts list | 1 copy |
| Factory acceptance test report | 1 copy |
| Shipboard testing program and procedure | 1 copy |
RMRS Certificate (RS Certificate of Conformity) as per Form 6.5.30 — 1 copy.

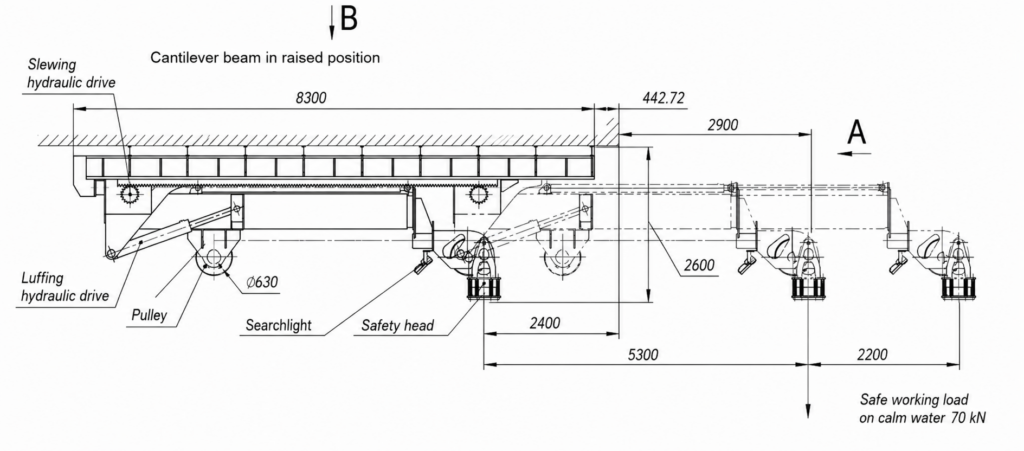

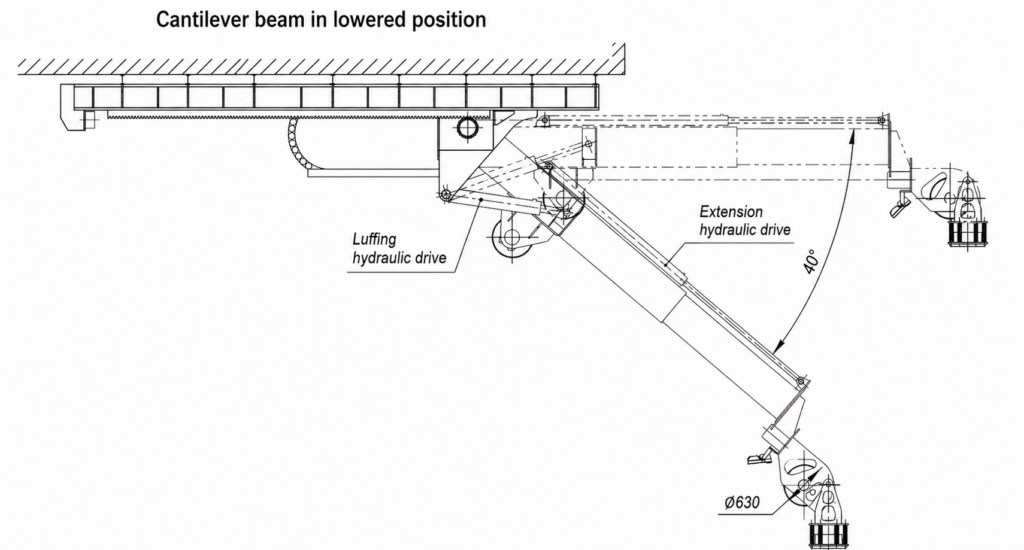

The system configuration consists of a hydraulically driven, telescopic, luffing boom assembly.

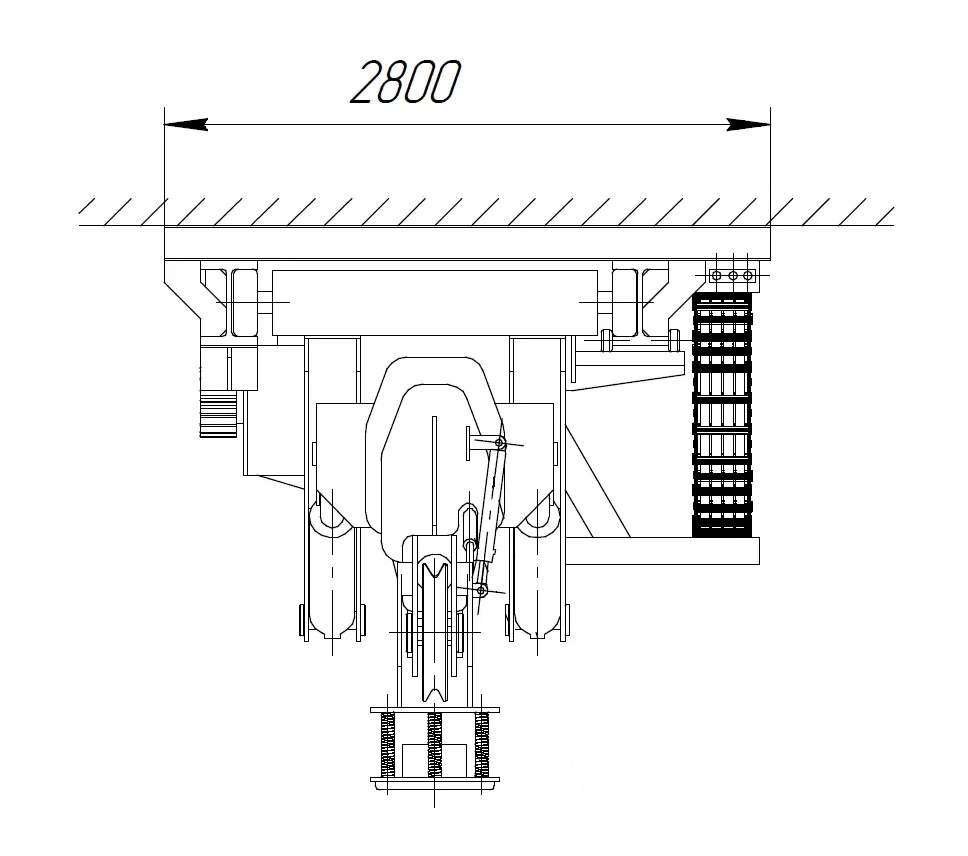

The boom is designed for overhead mounting onto the deckhead (T-beam stiffeners) inside the hangar and extends outboard through a hatch opening.
The system features a pivoting sheave arrangement with a specialized docking head for CTD rosette handling, alongside a sheave train directing the umbilical/wire rope to the winch. To facilitate umbilical sheave and docking head maintenance, the boom can be lowered to the deck level.
The sheave design allows for umbilical reeving without dismantling the cable connector. Control is provided via a portable, backpack-type wireless control panel.
The telescopic LARS is equipped with:
Power supply for the boom is delivered from the shipboard hydraulic system with a nominal pressure of 250 bar and a rated flow of up to 200 l/min.
Operational Stability and Safety:
The telescopic LARS maintains structural integrity and remains fully functional after exposure to the following conditions when secured in the stowed position:
An emergency manual override is provided to return the boom to the stowed position in the event of a power failure.
Hydraulic cylinders are fitted with pilot-operated check valves with control line adjustment or sealed counterbalance valves to ensure smooth movement and positive holding in intermediate positions, as well as hose-burst protection valves.
Technical Requirements:
Izhora Hydrosystems LLC
12 months from the date of shipment, unless otherwise specified by the contract.
