Portable cargo beam, SWL 160 kg (Technical supply specification)


1. General Information (Operating Conditions)

The portable cargo beam is designed for reliable marine operation under the following conditions:

  • Ambient air temperature: max. +15°C with 70% humidity in summer, min. -30°C with 85% humidity in winter.
  • Seawater temperature: max. +7°C, min. 0°C.

2. Purpose

For lifting and handling loads up to 160 kg during onboard installation and maintenance work in confined spaces.

Portable cargo beam, SWL 160 kg — Side view outline drawing
Portable cargo beam, SWL 160 kg — Side view outline drawing

About

Portable Cargo Beam: Efficient Load Handling Solution

The portable cargo beam provides efficient load handling in confined spaces where conventional lifting equipment cannot be deployed. It ensures controlled load positioning and reduces manual effort, enhancing operational safety. Due to its compact design, the equipment facilitates precise operations, particularly in restricted and hard-to-reach areas.

Application Flexibility

This equipment is utilized across various sectors, including construction, shipbuilding, industrial facilities, and installation sites. The portable cargo beam readily adapts to operational requirements and integrates with other tools to optimize workflow. Its versatility supports a wide range of tasks, eliminating the need for additional specialized equipment.

Equipment Advantages

Key advantages of the portable cargo beam include versatility and high mobility. It optimizes load handling, accelerates workflows, and improves operational precision. Furthermore, the system can be configured for personnel lifting where required, expanding its capabilities and adding critical value to specialized projects.

Workflow Integration

Deploying the portable cargo beam simplifies logistics management and reduces cycle times. It optimizes manpower utilization and increases overall site productivity. Integrating this equipment creates a structured and secure working environment, mitigating risks and enhancing team efficiency.

Reliability and Quality

Izhora Hydrosystems LLC designs portable cargo beams in strict compliance with modern safety and ergonomic standards. All equipment is engineered for high reliability and ease of operation to meet demanding professional requirements. This ensures consistent, safe, and efficient performance across complex operational tasks.

Future Applications

The portable cargo beam remains a highly demanded tool due to its functionality, versatility, and adaptability. It provides new opportunities for enhancing productivity and optimizing on-site processes. Utilizing this equipment enables operators to implement more efficient working methods and meet contemporary industrial requirements.


3. Scope of Supply

3.1 Portable Cargo Beam, SWL 160 kg

3.1.1 Product Composition

ComponentQty
Cargo beam assembly, complete with manual winch, hoists, and fasteners1 set
Weld-on steel sockets for cargo beam installation on companionway hatch coamings7 pcs
Supervision of installation and commissioning1 job
Portable cargo beam, SWL 160 kg — Front view outline drawing
Portable cargo beam, SWL 160 kg — Front view outline drawing

3.1.2 Technical Parameters

ParameterValue
Equipment typePortable fixed-radius cargo beam with socket mounting on companionway hatch coamings, complete with manual winch
Lifting capacity160 kg
Fixed radius400 mm from coaming wall to hatch center
Beam height2 m from hatch coaming edge to hook
Hoist hook travel7 m
Manual winch and hoistConfigured for personnel lifting (1 person up to 160 kg)
Weight of cargo beam assemblySuitable for single-person transit
Beam designProvides 360-degree rotation with locking intervals at every 90 degrees

3.1.3 Spare Parts (SPTA)

Manufacturer standard SPTA kit for 1 year of operation — 1 set.

3.1.4 Documentation

DocumentQty
Product passport1
Installation and operating manual1
Onboard test program and procedure1
Factory test report1
SPTA list1

3.1.5 Certificates

RMRS Certificate (RS Form 6.5.30) — 1 copy.

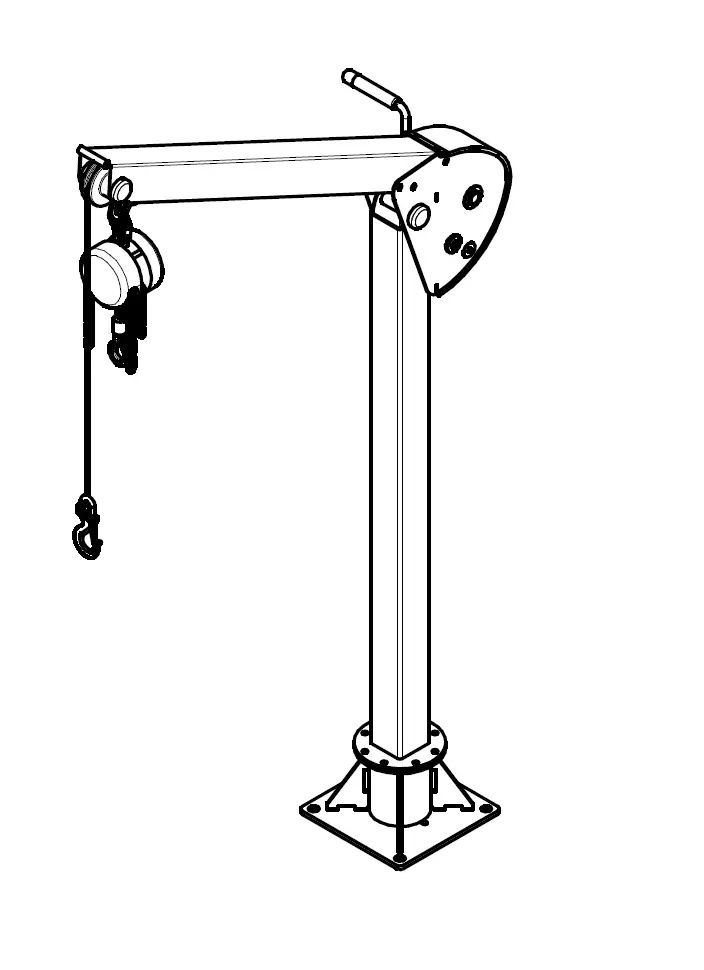

Portable cargo beam, SWL 160 kg — Isometric Drawing
Portable cargo beam, SWL 160 kg — Isometric Drawing

4.  Additional Requirements

4.1 The equipment complies with the requirements of the regulatory documents listed below and is delivered with the certificates required by these regulatory documents:

  • General Regulations for the Classification and Other Activities of the Russian Maritime Register of Shipping.
  • Technical Regulation on the Safety of Maritime Transport Items, approved by Decree of the Government of the Russian Federation No. 620 dated August 12, 2010.
  • SP 2.5.3650-20 Sanitary and Epidemiological Requirements for Specific Modes of Transport and Transport Infrastructure Facilities.
  • Other applicable requirements of Russian legislation, including, but not limited to, sanitary and veterinary requirements, occupational health and industrial safety requirements, and safety requirements for the entire production process and manufactured products onboard the constructed vessel.

4.2  The equipment complies with the requirements of the regulatory documents listed above, as well as amendments and supplements thereto, in force as of the vessel’s keel laying date.

4.3  The climatic execution of the equipment corresponds to the vessel class.

4.3 The climatic execution of the equipment corresponds to the vessel class.

4.4 Instruction and data plates are in Russian.

4.5 The equipment may be delivered with the manufacturer’s standard coating system, but in any case, the coating system is subject to approval by the Customer and the Shipyard.

4.6 Preservation coatings ensure an indoor storage life of 12–18 months.

4.7 The equipment is intended for installation onboard the Project PV27 vessel.

4.8 The vessel is designed and built to the Russian Maritime Register of Shipping class notation: KM Arc4 (hull, machinery) AUT1-ICS BWM(T) GFS CONT (deck, cargo hold) DG (pack) Passenger ship.

4.9 Registry flag during construction: Russian Federation.


5. Manufacturer

Izhora Hydrosystems LLC


6.  Warranty Period

12 months from the shipment date, unless otherwise specified in the contract.
