The hydraulic drive of the boarding ladders provides automatic leveling of the steps and the stringer section, ensuring their horizontal position regardless of the ladder’s inclination angle. This enhances safety and ease of use. Various kinematic schemes and designs are available with a wide range of options to precisely match your requirements.
The marine boarding ladder ensures smooth and reliable hoisting and lowering thanks to its hydraulic system. Anti-slip steps maintain a horizontal position at any angle of the ladder’s inclination, guaranteeing safety and convenience. This allows for flexible adaptation of the design to various operating conditions.
Loading model
0%Loading model
0%
(highlighted in blue)

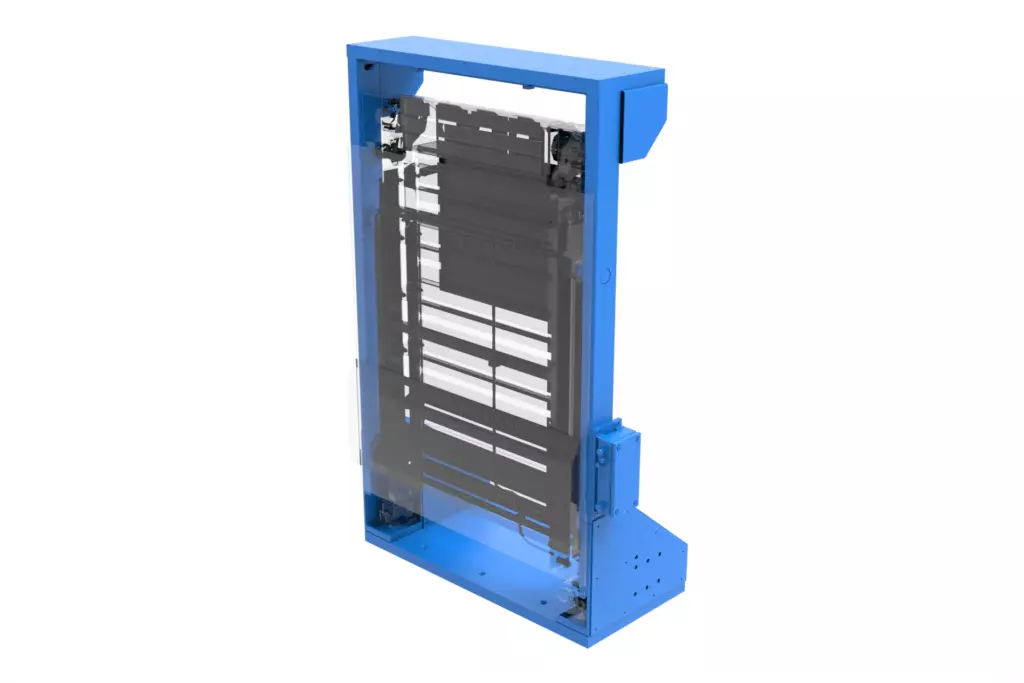

The gantry is a welded metal frame mounted into the ship’s opening via weld-on plates. It integrates the extension and locking mechanism of the ladder section, protected by an all-metal housing. Removable housing panels with screw fasteners provide easy access to hydraulic equipment for maintenance.
(highlighted in blue)
The ladder section is a welded frame structure with an anti-slip coating. It features weld-on eyes for attachment to the gantry and weld-on sockets for mounting a quick-release safety railing system.
(Highlighted in blue)

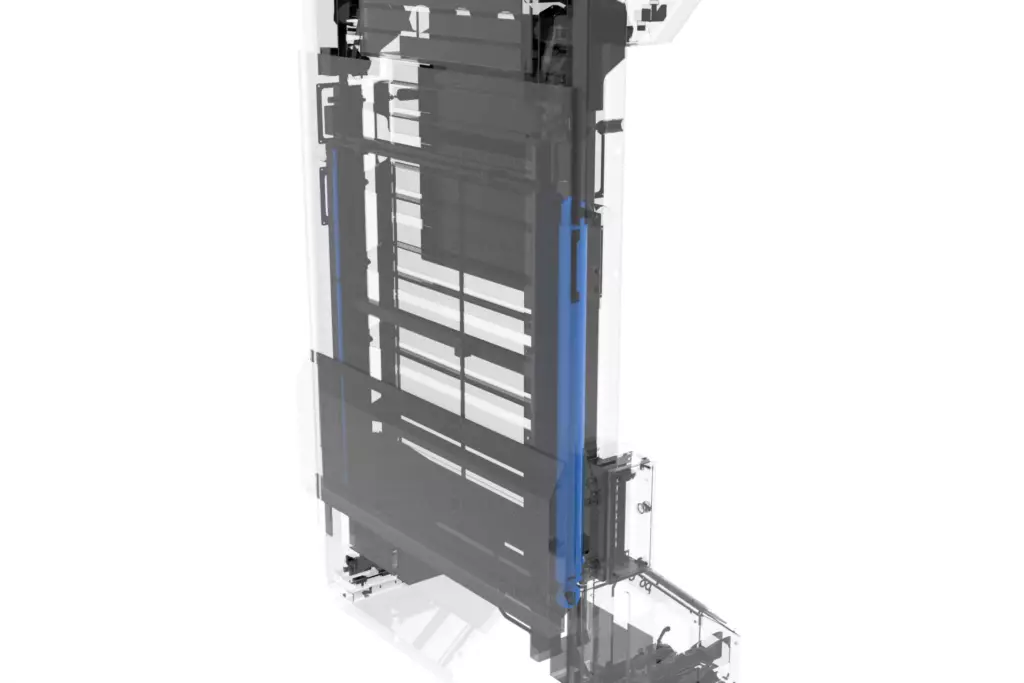

The hydraulic control system incorporates six cylinders. Four small-bore cylinders provide smooth extension of the main section, minimizing friction and structural wear. Two large-bore cylinders are responsible for adjusting the angle of inclination. All cylinders are equipped with hydraulic pilot-operated check valves (counterbalance valves) for reliable platform fixation in any position.
The following documentation provided with the unit:
| Document | Quantity |
|---|---|
| Product Data Sheet | 1 |
| Installation, Commissioning, and Adjustment Manual | 1 |
| Operating Manual | |
| Onboard Test Program and Methodology | 1 |
| Declaration of Materials (DM) | 1 |
| Supplier’s Declaration of Conformity (SDoC) | 1 |
When a Boarding Ladder Becomes Essential
Imagine standing on the deck of a large vessel. Below is the water, and a motorboat or tender has pulled alongside. How do you disembark? Jumping is dangerous and unprofessional. A rope ladder is for pirates, not for modern maritime operations. For safe boarding and disembarkation, a specialized structure is required: the side boarding ladder. It is far more than just a metal frame with steps; it is a sophisticated piece of engineering.
Why a Simple Ladder Is Not Enough
Whether a vessel is at anchor or moored, water levels are constantly shifting. Waves, tides, and the ship’s loading conditions all determine the height of the deck relative to the water. Consequently, a ladder must be adjustable—capable of hoisting, lowering, and changing its angle of inclination. Throughout these adjustments, it must remain stable and reliable, ensuring that personnel carrying equipment or luggage feel completely secure.

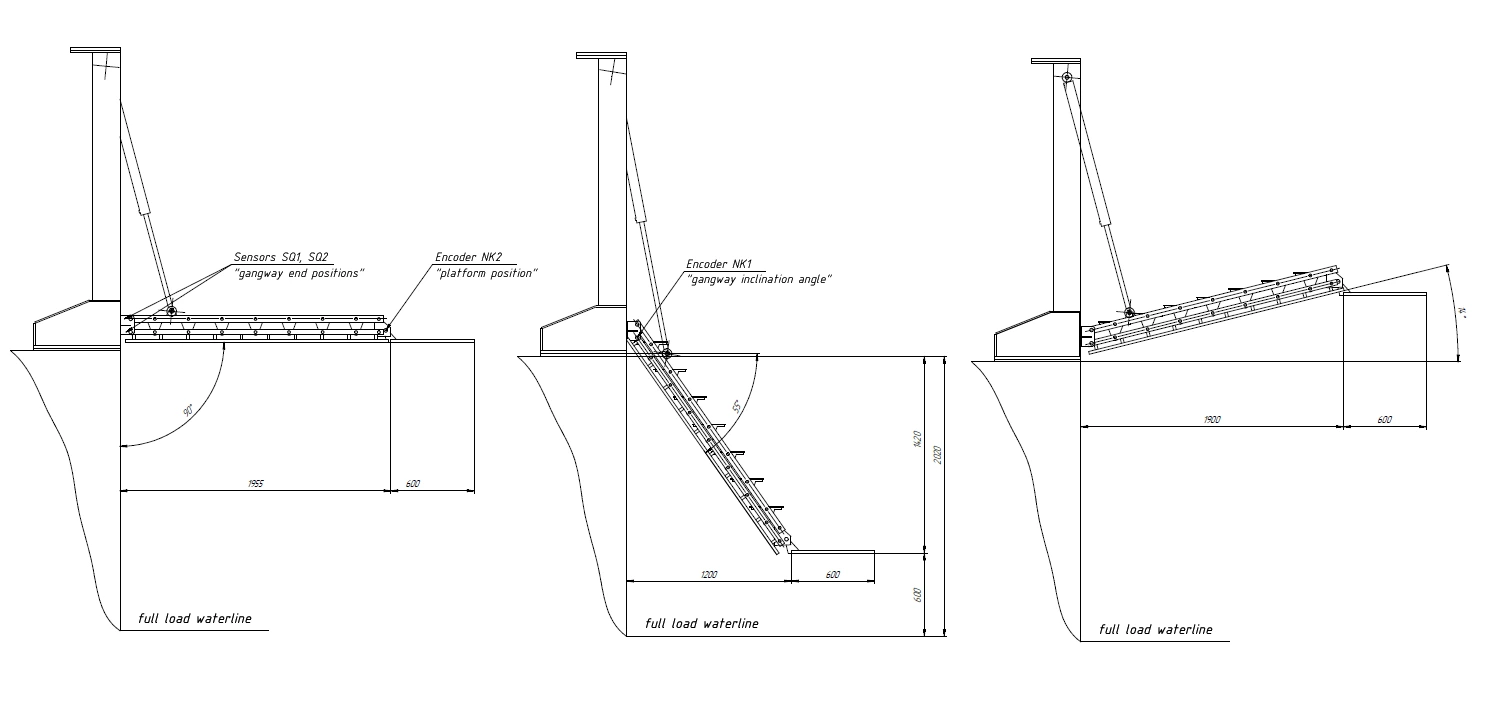

Design and Kinematics
How does it work in practice? Engineers have developed a simple yet highly effective design. The main component of the ladder is a welded frame, similar to a bridge. It is clad with metal sheeting to eliminate gaps and provide a clean, professional finish. This “bridge” is not fixed rigidly to the vessel but is hinged to allow movement. Powered by hydraulics, the ladder operates through a wide luffing range: from an upward inclination of +14 degrees to a downward reach of -50 degrees. This versatility ensures safe access to everything from low-profile tenders to high piers.
Operating and Stowed Modes
The entire assembly weighs over a ton—comparable to a small car. Manually operating such a mass is impossible, so a hydraulic power unit (HPU) handles the movement. Pressurized oil is fed into the cylinders, enabling smooth, jerk-free hoisting and lowering of the ladder. When the vessel is underway, the ladder is retracted to a horizontal “stowed” position, and the railings are removed to prevent interference or damage from wind and waves. For boarding, the ladder is deployed, and the handrails are quickly reinstalled. They feature a standard height of one meter to ensure ergonomic and safe passage.
Materials and Corrosion Resistance
Regarding safety, the materials are carefully selected—specifically stainless steel, which is resistant to saltwater, precipitation, and extreme temperature fluctuations. The design process is not arbitrary but follows strict regulations approved by the Russian Classification Society (RCS). This ensures the structure is backed by rigorous calculations and testing, guaranteeing it will withstand storms, heavy foot traffic, and years of continuous service.
Why a Modern Ladder Is More Than It Seems
Ultimately, a modern boarding ladder is far more than just a “plank with rungs.” It is a sophisticated mechanism that connects the vessel to the outside world. It can be stowed away when not in use and becomes a reliable bridge in any weather. If you ever find yourself on board, descending such a ladder to a tender, know that behind this simple action lies the meticulous work of engineers who have ensured that the challenges of the sea remain completely unnoticed.

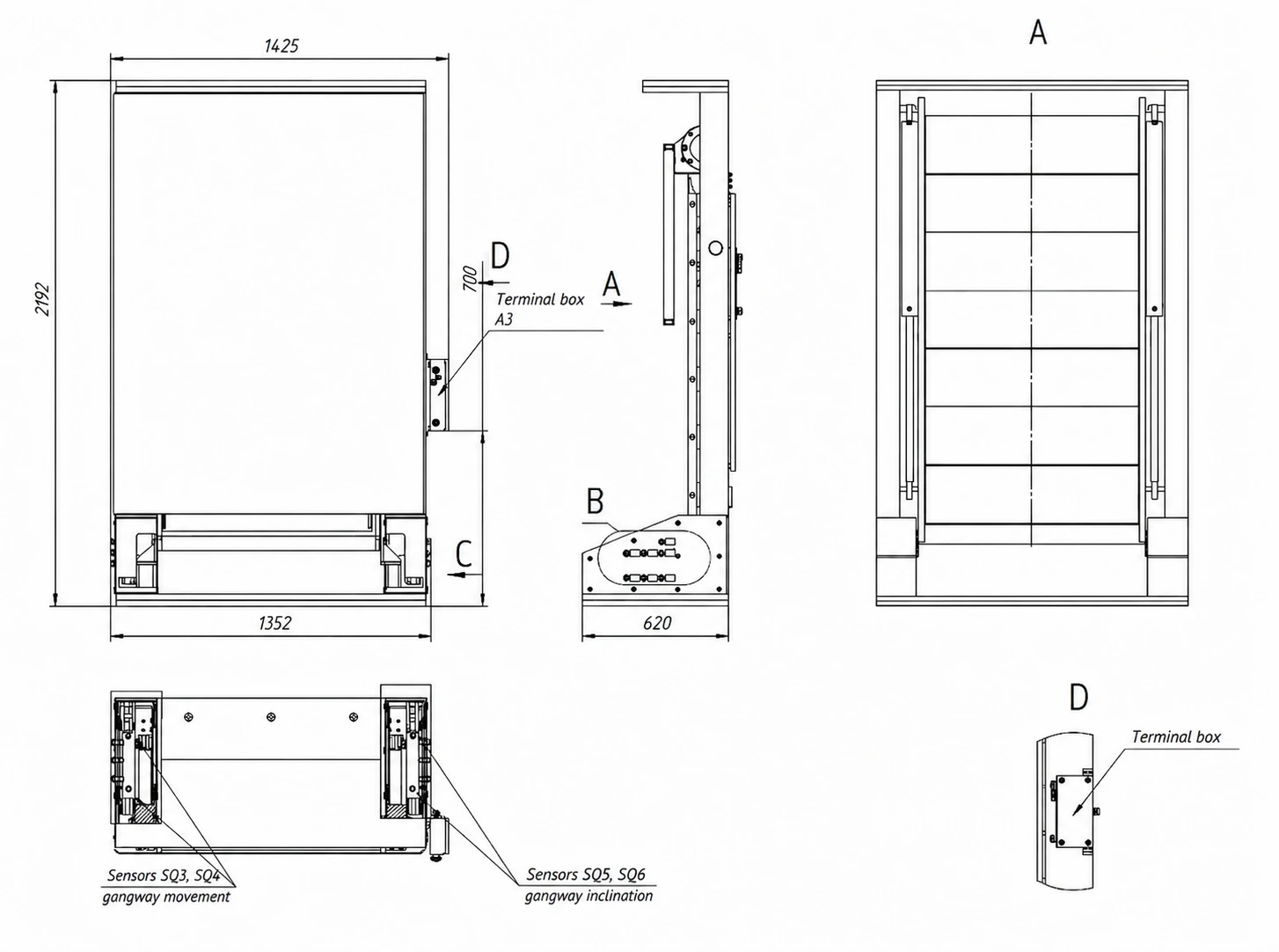

| Parameter | Value |
|---|---|
| Gantry height, mm | 2192 mm |
| Ladder width between handrails, mm | 900 mm |
| External gantry width, mm | 1352 mm |
| Ladder section length, mm | 1900 mm |
| Platform drive | Electro-hydraulic |
| HPU rated flow rate, l/min | 10 l/min |
| Rated pressure, MPa | 12 MPa |
| Maximum pressure, not more than, MPa | 16 MPa |
| Hydraulic tank capacity, l | 25 l |
| Electric motor power | 3 kW |
| Gantry mounting | Bolted |
The equipment complies with the following requirements:
