Hydraulic overhead launch and recovery systems (LARS) are designed for the safe launching of boats and jet skis from the vessel into the water. The suspended overhead design ensures that watercraft can be extended several meters outboard and securely clamped while stowed. This solution guarantees operational stability and significantly reduces the deck space required. “Izhora Hydrosystems” designs and manufactures overhead launch and recovery systems for a wide range of applications.

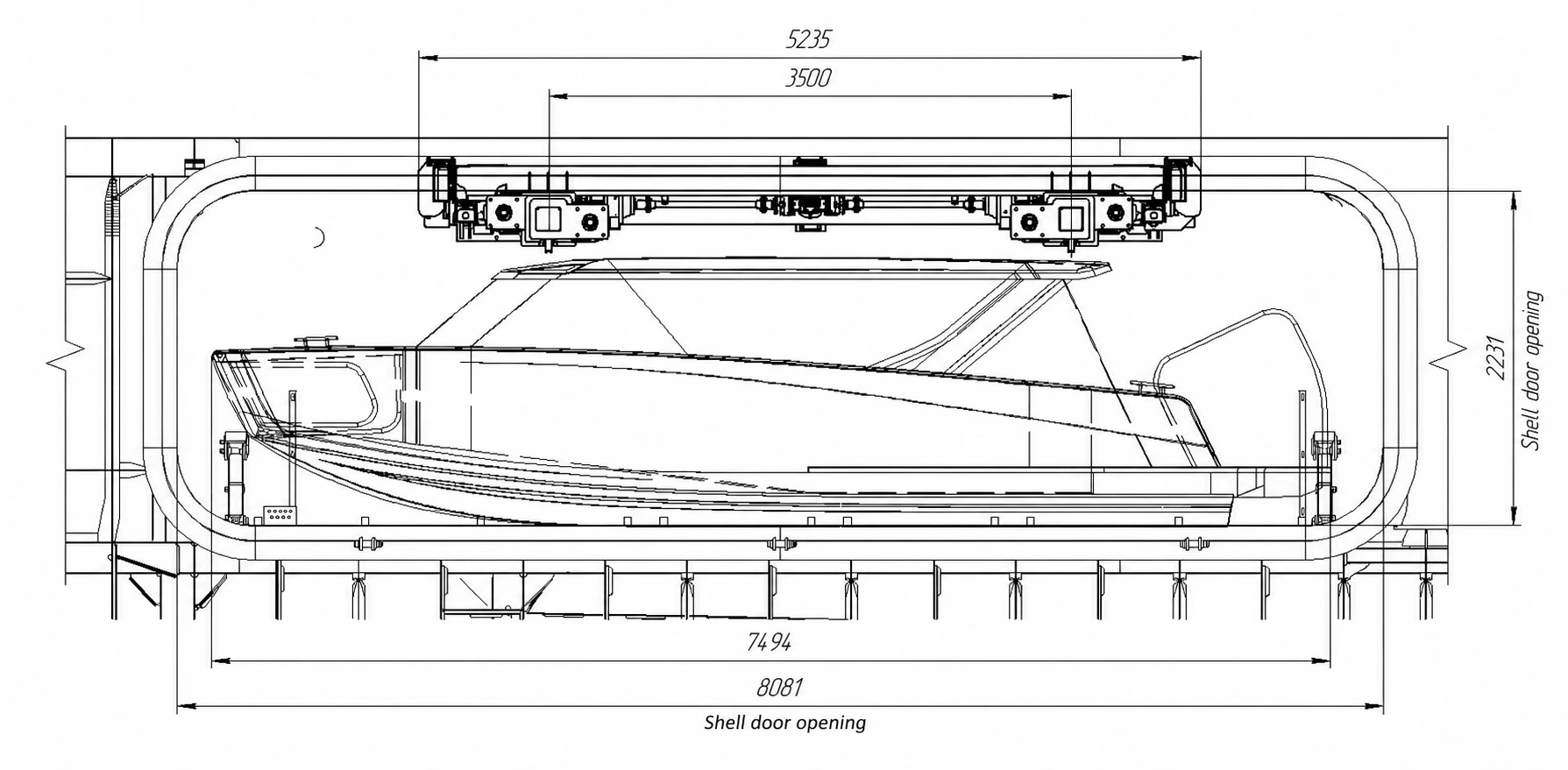

The 3.7TX4.5M model provides launching and recovery of boats weighing up to 3.65 tons with a maximum outreach of 4.5 meters. Hydraulic cylinders guarantee reliable and predictable movement of the watercraft, while the suspended overhead construction allows for the rational use of deck space.
Loading model
(highlighted in blue)

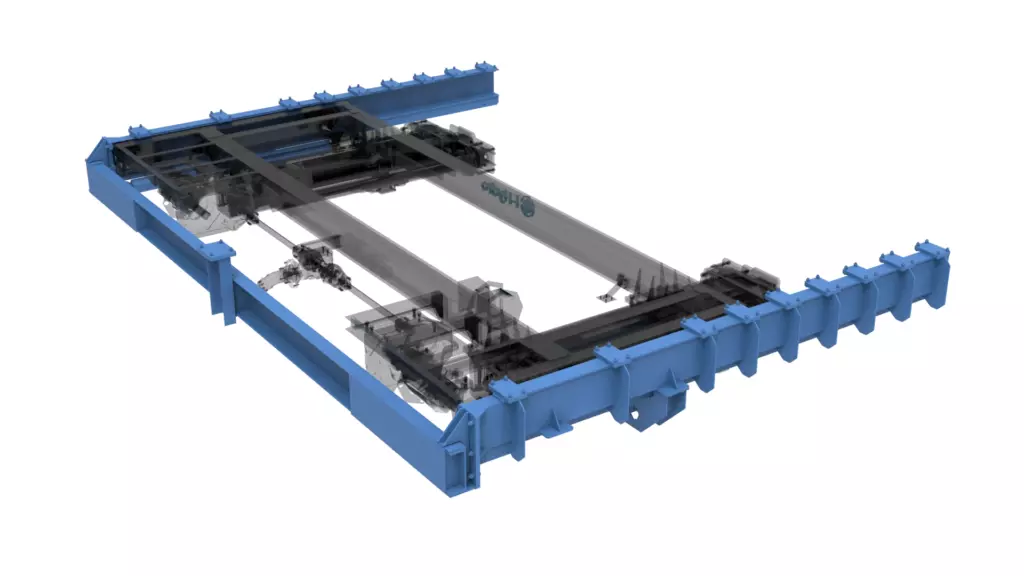

The LARS base integrates the track, rails, and frame into a single structural unit that is securely fastened to the vessel’s deckhead. The track is a welded steel structure along whose rails the overhead bridge travels. The rails include embedding plates for securing to the vessel and brackets for supporting hydraulic cylinders and cable tracks. The frame connects the rail tracks and ensures ergonomic routing of hydraulic lines.
(highlighted in blue)

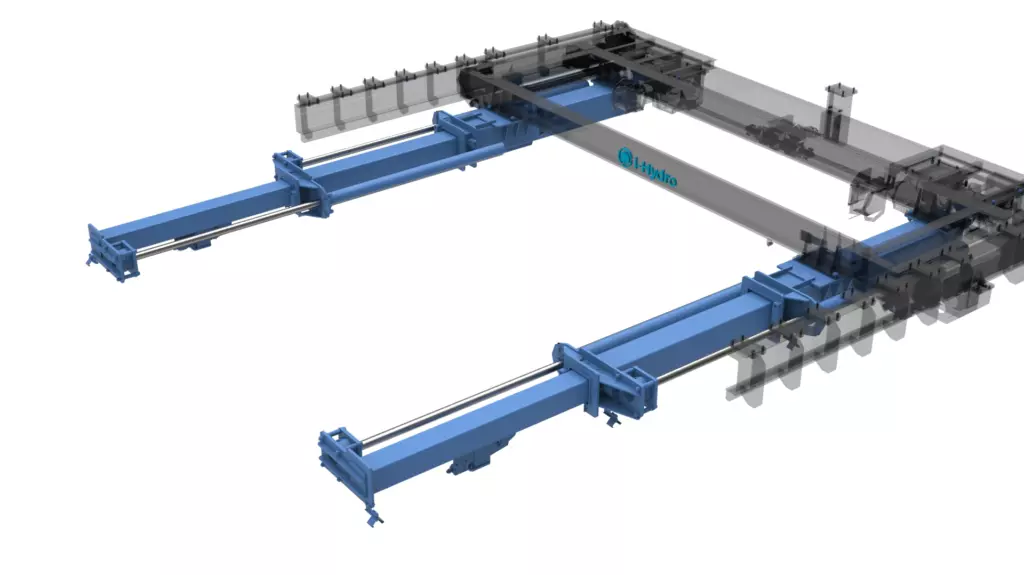

The telescopic section ensures linear movement of the box-section segments along oil-filled nylon pads powered by hydraulic cylinders. Smooth operation without misalignments or jamming under high loads is guaranteed by wear pads. A guide sheave block at the fly section prevents wire rope contact with the inner walls, while a mechanical stop plate physically restricts the cursor in its uppermost position. Sensors monitor the end positions of the boom segments and the upper limit of the cursor, ensuring stable and predictable performance during each cycle.
(highlighted in blue)

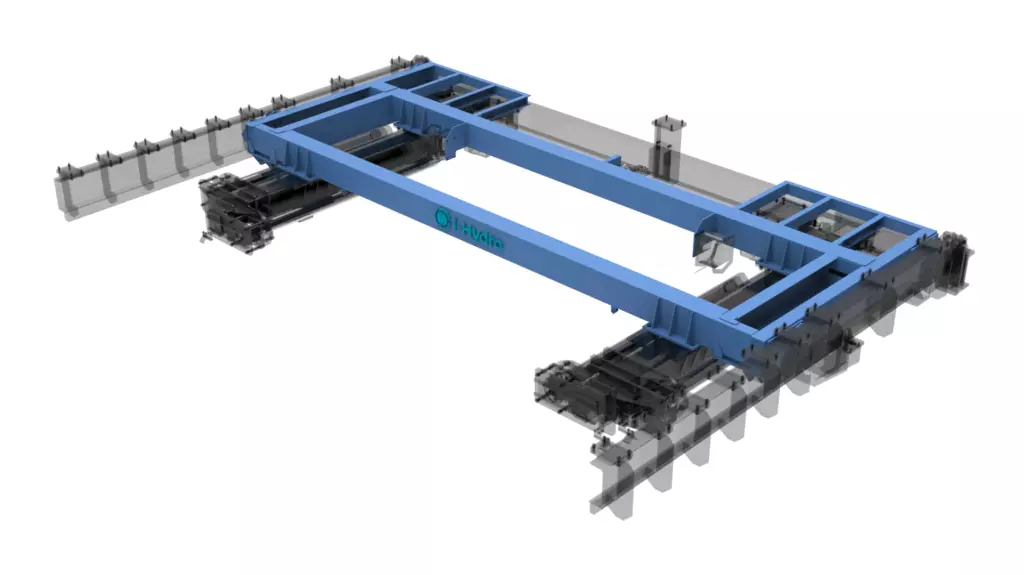

The bridge executes operational procedures with the watercraft. Its heavy-duty welded frame ensures secure installation of all components and assemblies.
(highlighted in blue)

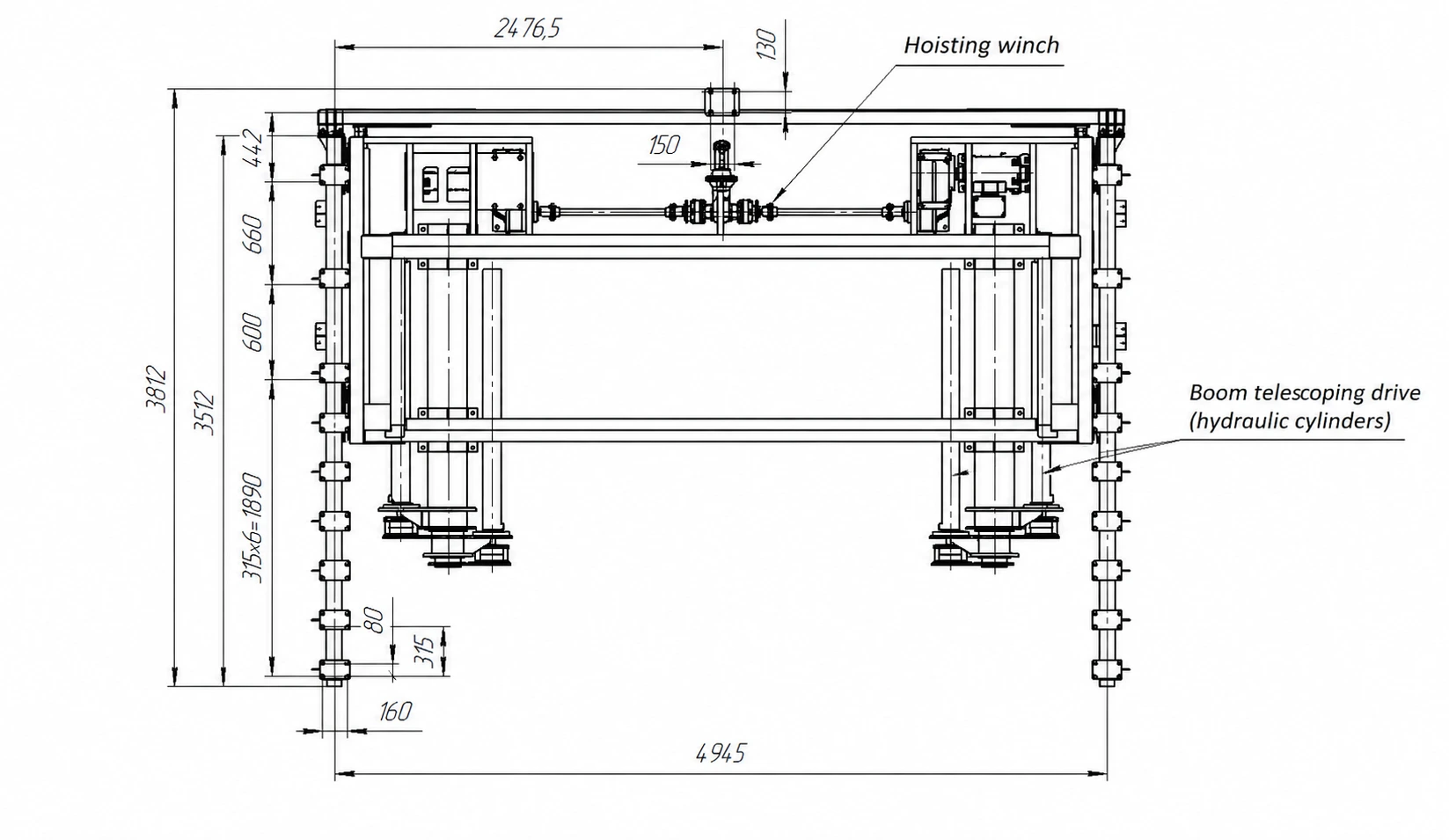

Synchronous launching and recovery of the watercraft are guaranteed by two winches sharing a common drive, which is connected via propshafts to grooved drums for wire rope spooling. Fail-safe hydraulic brakes positioned between the gearbox and the drums ensure secure holding, while a spooling pressure roller equipped with a sensor monitors the maximum length of the reeled rope.
(highlighted in blue)

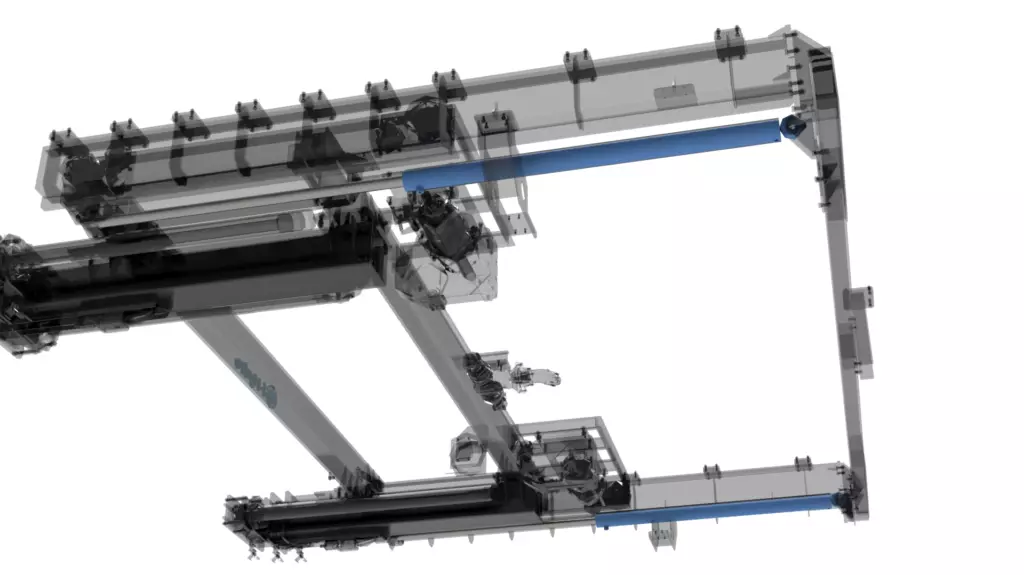

The hydraulic cylinders move the bridge along the rail tracks and, in tandem with the telescoping booms, extend the watercraft outboard and bring it back. Synchronous operation is guaranteed by a flow divider that evenly distributes the hydraulic fluid flow.
The following documentation provided with the LARS:
| Document | Quantity |
|---|---|
| Product Data Sheet | 1 |
| Installation, Commissioning, and Adjustment Manual | 1 |
| Operating Manual | 1 |
| Onboard Test Program and Methodology | 1 |
How to Recover a Boat On Board: The Mechanics of an Invisible Crane
Imagine a large river cruise ship moored at the berth, and a small pleasure boat needs to be launched into the water from its side — smoothly, without jerks or misalignments. It would seem like nothing out of the ordinary. However, if the boat weighs nearly four tons and the launch height reaches four meters, a simple winch is no longer enough. It is precisely for such tasks that a launch and recovery system is created — a sophisticated machine that hides directly inside the vessel’s deckhead and remains virtually invisible until it is time to work.
Why It Is More Complex Than It Seems
The main challenge lies in the geometry. The boat is positioned on board the vessel, but it must be launched outboard into the water. This means that the device must not only lift the load up and down but also move it horizontally — “extending” it outboard to a distance of almost 2.5 meters. At the same time, the total outreach of the mechanism reaches 4.3 meters. Add to this the operational environment: wind gusts up to 24 m/s, freezing temperatures down to −30 °C, and constant shipboard vibration. Any of these loads individually is already a serious challenge for a designer. Combined, they present a task that requires a well-thought-out engineering solution.
How the Mechanism Works
The design of the system resembles a retractable bridge integrated into the deckhead. The foundation consists of two parallel rails fastened to the vessel’s deckhead (the nautical term for a ceiling). A transverse beam — the bridge — travels along these rails. The bridge itself carries two telescopic booms: retractable, multi-section box-shaped booms consisting of three sections each. When the telescopic booms extend, they carry the load outboard. The boat is raised and lowered by two 13.5 mm diameter steel wire ropes wound onto winch drums. The hoisting speed is at least 10 meters per minute.
What It Is Made Of
The load-bearing steel structures — including the rails, bridge, and winch housings — are fabricated from structural steel specifically selected for its frost-resistant properties. For the most heavily loaded components, such as drum axles and wheels, high-strength alloy steels are utilized. The telescopic boom sections slide along oil-filled nylon pads — a specialized anti-friction material that eliminates the need for frequent lubrication and performs exceptionally well under shock loads. The entire structure is painted white.
The Brain: Hydraulics and Electronics
The entire movement of the system is powered by a hydraulic system. A hydraulic power unit delivers oil at a pressure of up to 20 MPa (approximately 200 times the pressure of a car tire) to the hydraulic cylinders and fail-safe winch brakes. Synchronous operation of the two winches is achieved mechanically — via a common drive and propshafts — which prevents the boat from tilting during recovery. The hydraulic cylinders moving the bridge along the rails also operate synchronously, coordinated by a flow divider. The total volume of hydraulic fluid in the system is 280 liters. The entire operation is managed by a single operator using a compact wireless remote control unit right from the deck.
How to Control It
The operator holds a compact radio remote control unit and monitors the entire process. The sequence is straightforward: the bridge extends outboard, the telescopic booms deploy, the cursor — a specialized transverse bar with slings — lowers to the water, and the boat is hooked and recovered on board. In case of an emergency, a single press of the “Emergency Stop” button instantly locks all movements. Sensors monitor the limit positions of every moving component and prevent the mechanism from traveling beyond permissible boundaries. If the power supply fails, the system can be switched to manual control mode — a manual hand pump is integrated into the hydraulic system for this purpose.
| Parameter | Value |
|---|---|
| Safe Working Load (SWL) at max. outreach | 3650 kg |
| Max. hoisting/lowering height | 4 m |
| Max. boom outreach | 4,3 m |
| Max. outboard outreach | 2,45 m |
| Min. hoisting/lowering speed | 10 m/min |
| LARS wire rope type | Wire rope 13.5 mm, GL-VK-Zh-N-T-R-1770/180 |
| Max. operating hydraulic pressure | 20 MPa |
| Hydraulic fluid type | Mineral oil HLP 32 |
| Hydraulic fluid volume (including shell door system), l | 280 l |
| Max. power (including shell door system) | 15 kW |
| Power supply | 380 V 50 Hz 3 phase |
| Ingress protection | IP56 |
The equipment complies with the following requirements:
