Marine overhead cranes provide reliable handling of cargo, equipment, and supplies within the vessel’s internal compartments. They ensure the performance of tasks beyond the reach of deck cranes, increasing operational efficiency and stability.
These cranes offer enhanced reliability and minimal load swing, even in rolling seas and confined spaces. This guarantees safe operation under adverse conditions. We offer both electric and hydraulic drive models to optimally meet your requirements.

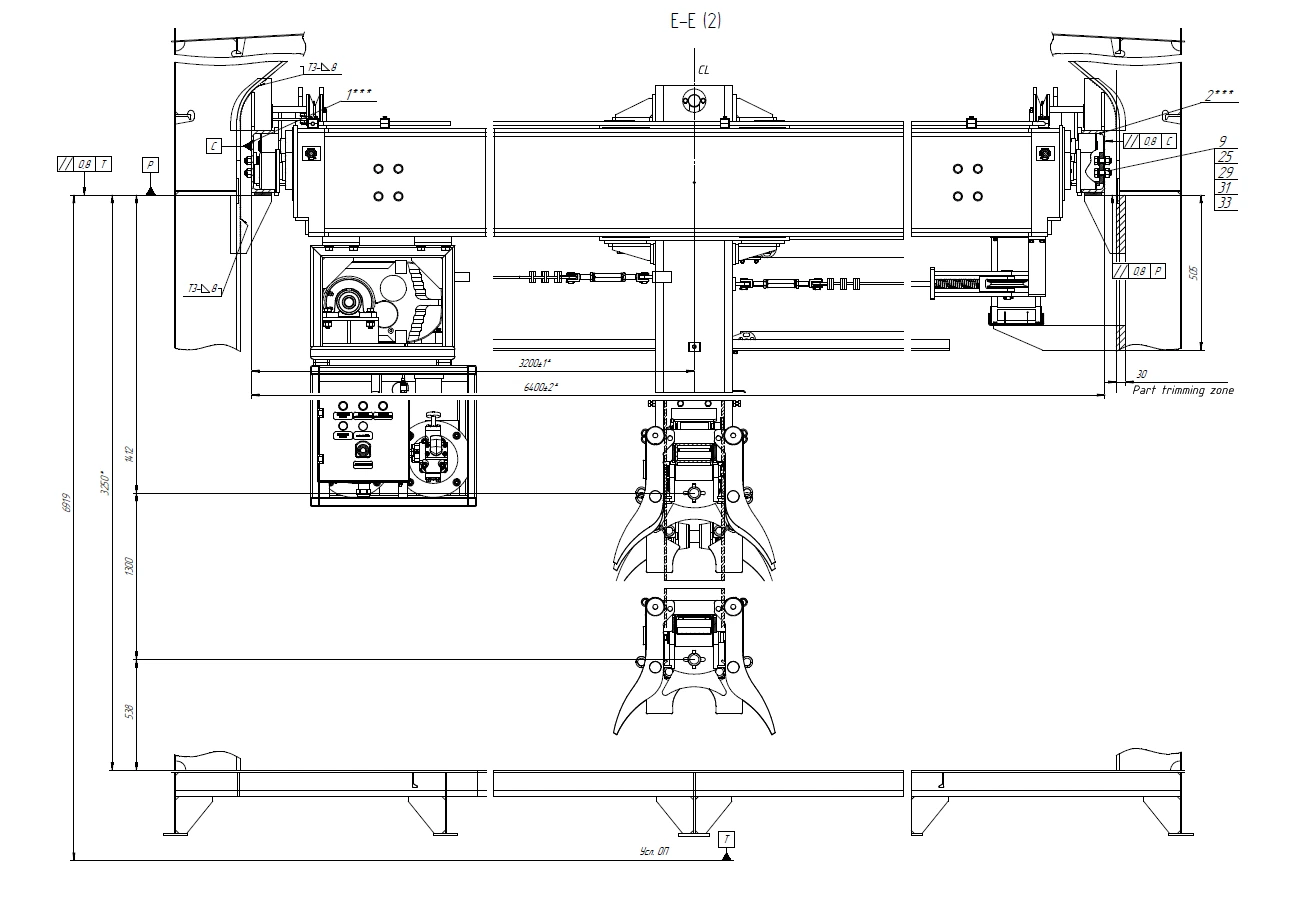

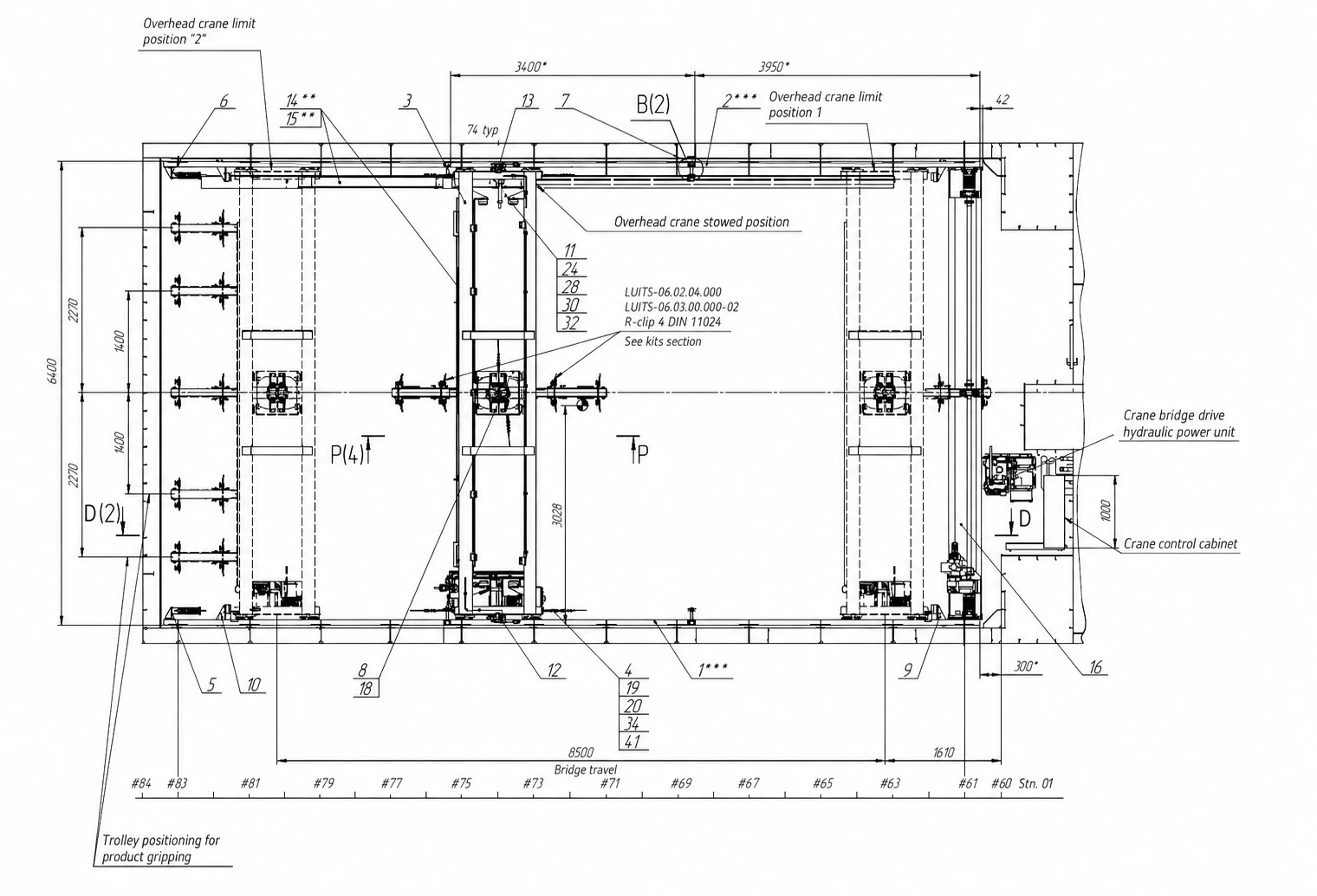

The 3T overhead crane provides reliable handling of loads up to 3 t with a lifting height of 1.3 m. Its compact design (11×6.3 m) with ceiling mounting saves valuable cargo hold space. The two-section hydraulic mechanism with lateral stabilization ensures stable operation and eliminates load sway even in cramped conditions.
Loading model
(highlighted in green)

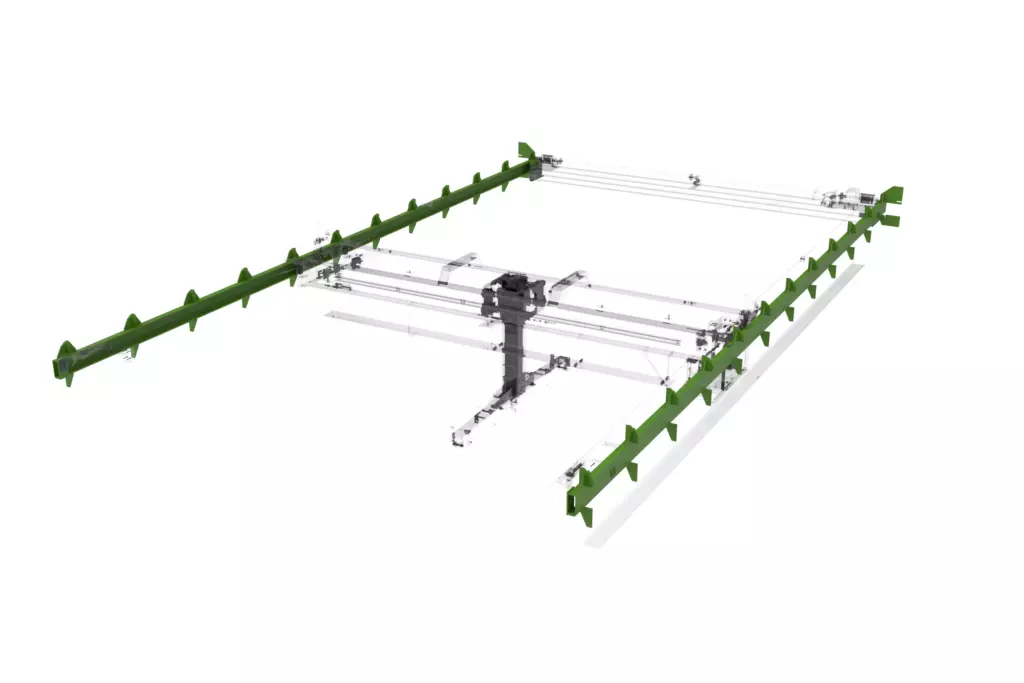

The runway rail system enables the travel of the crane bridge and transfers operational loads to the vessel’s structure. Its welded steel construction ensures operational stability, securely fixes the crane to the ceiling, and provides full access to cargo at any point within the compartment.
(highlighted in green)

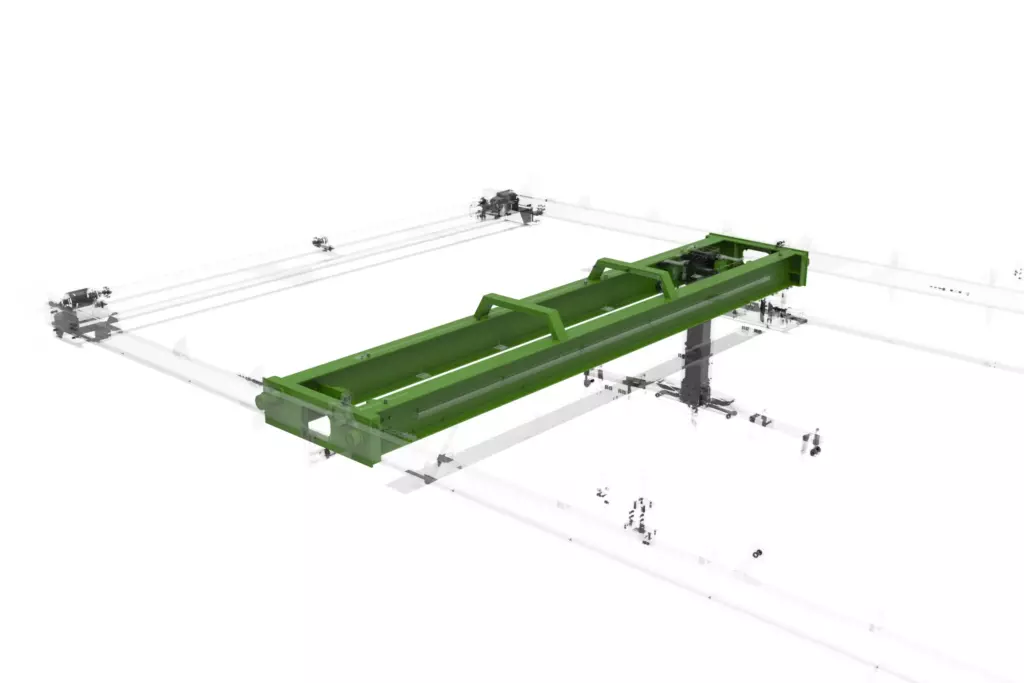

The crane bridge is equipped with support rollers for movement along the rails and a traveling trolley. The use of a hydraulic power unit in the trolley drive ensures smooth and precise load positioning.
(highlighted in green)

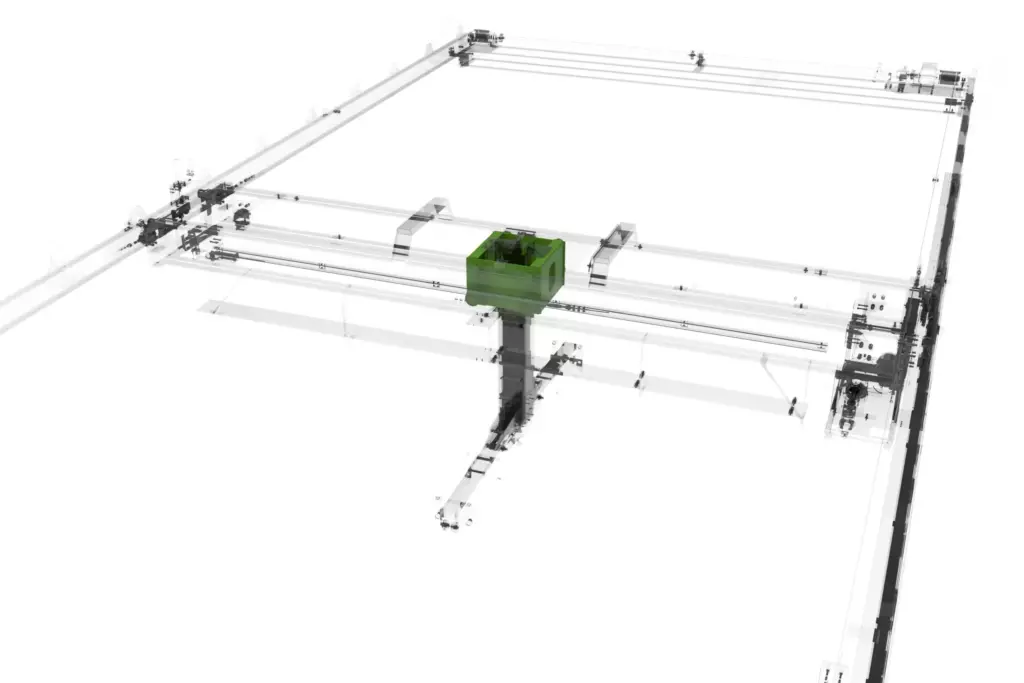

The trolley provides movement along the bridge and secure mounting for the lifting mechanism. The trolley design allows for convenient arrangement of hydraulic and electrical connections, ensuring stable and uninterrupted equipment operation.
(highlighted in green)

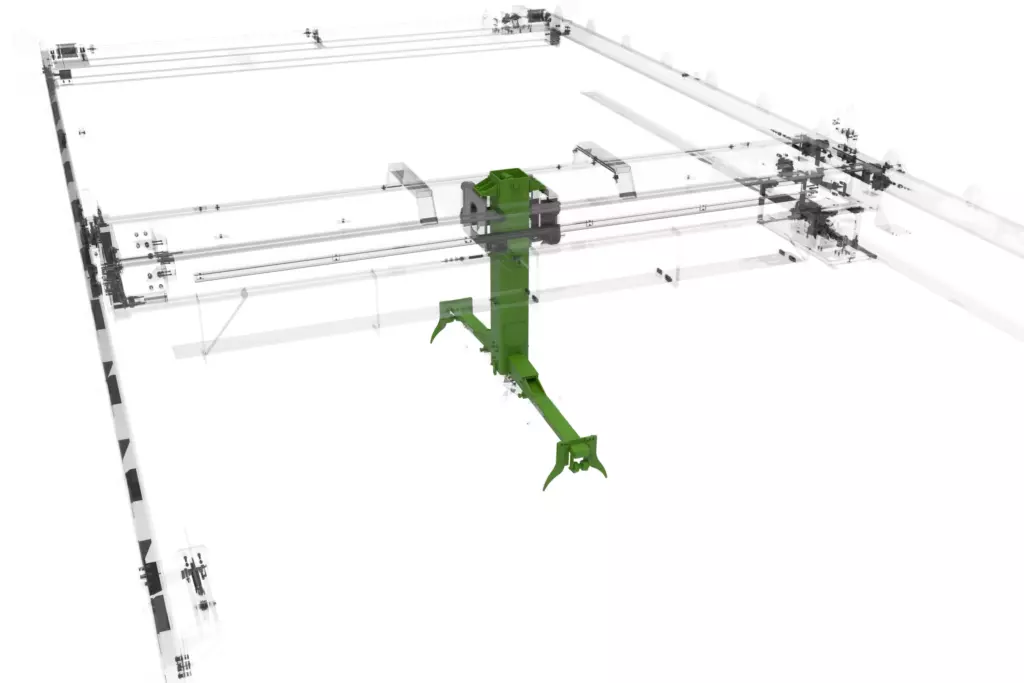

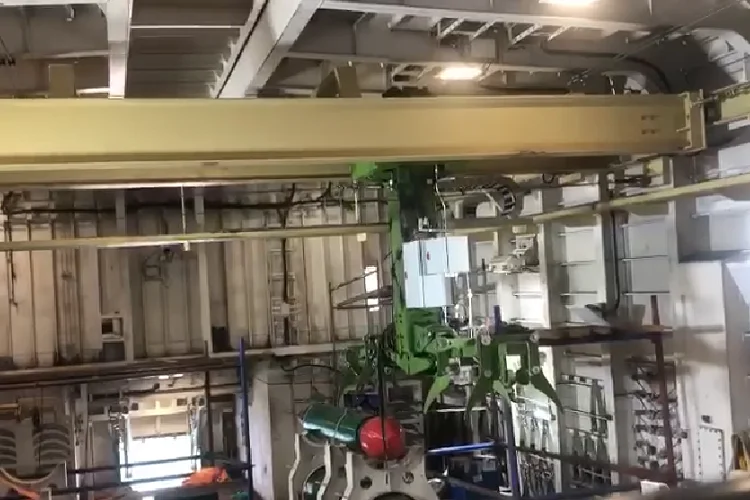

The lifting mechanism is mounted on the trolley and consists of a telescopic system with a central hydraulic cylinder. The design includes stabilizer arms to prevent load sway and is equipped with a reliable lifting attachment. This ensures stable and safe transportation.
(highlighted in green)

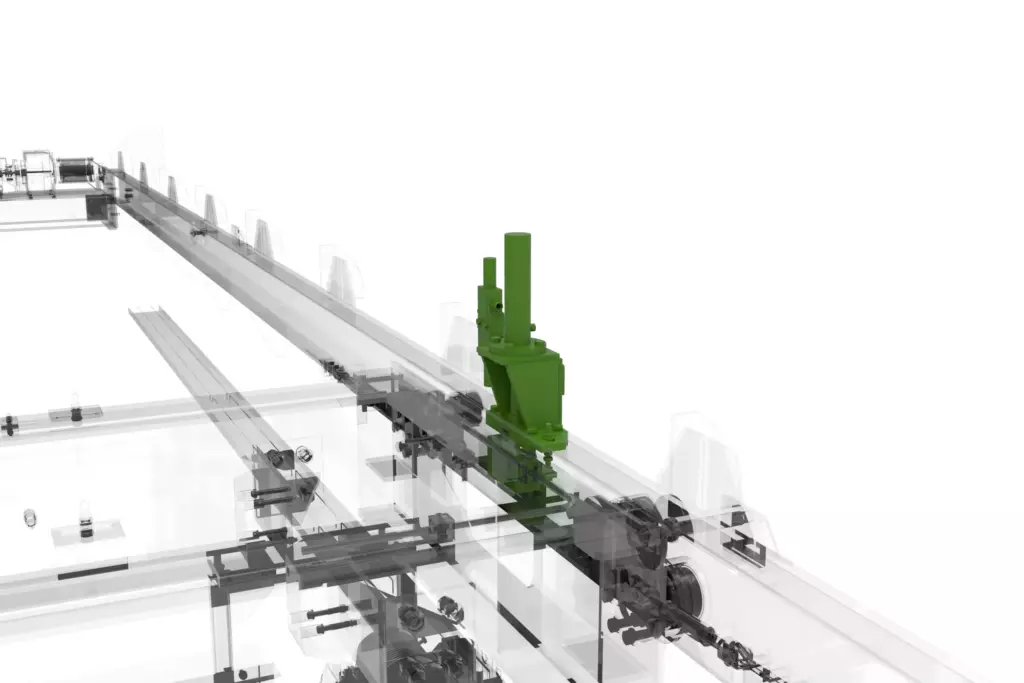

The bridge locking mechanism ensures the secure seafastening of the crane in the stowed position. It operates via hydraulic cylinders that lock the bridge, guaranteeing stability and safety during transit or parking.
(highlighted in green)
The bridge travel drive utilizes a double-sided wire rope winch, ensuring precise and reliable movement. Integrated compensators with sheave blocks eliminate rope slack, guaranteeing long-term operational stability.
(highlighted in green)

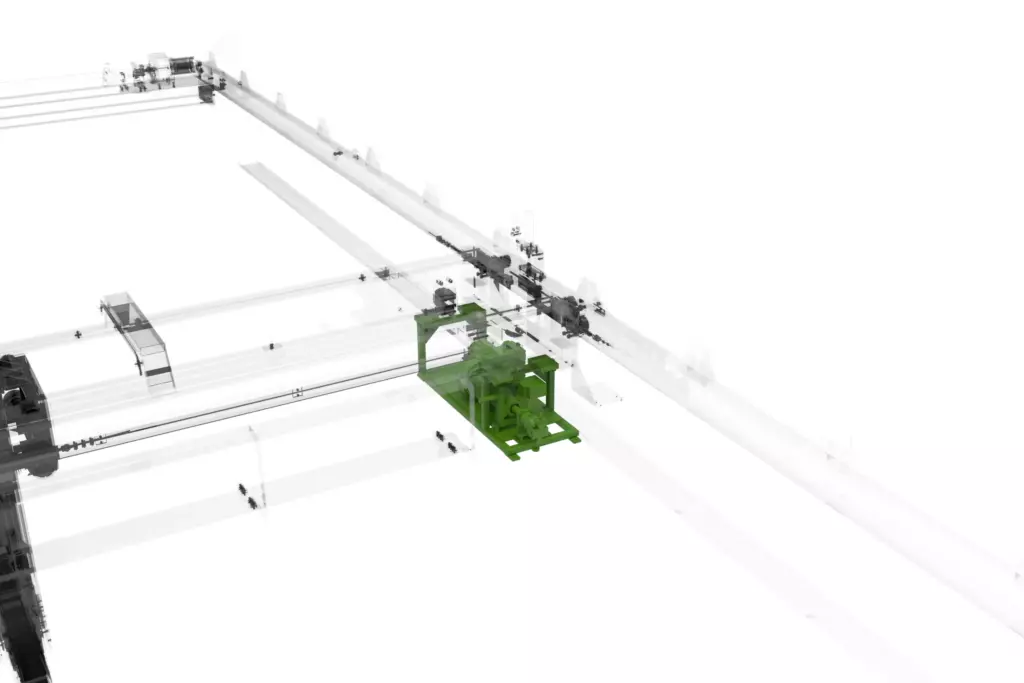

The wire rope trolley drive ensures reliable bidirectional movement. A compensation system with a sheave block guarantees constant rope tension, maintaining operational precision and durability.
The following documentation provided with the crane:
| Document | Quantity |
|---|---|
| Product Data Sheet | 1 |
| Installation, Commissioning, and Adjustment Manual | 1 |
| Operating Manual | 1 |
| Onboard Test Program and Methodology | 1 |
| Accompanying Documentation (composition, storage requirements) | 1 |
In the cargo hold of a torpedo retriever, there is no room for broad engineering gestures. Everything here is dictated by the hull geometry, weight distribution, and the primary factor of maritime operation—vessel motion. This is precisely where the 3-ton marine overhead manipulator crane operates—a machine designed not for a factory floor, but for the confined spaces of a vessel.
Formally, the task seems conventional: lift the item, move it along the hold, and place it onto a cradle. However, adding the real-world variables—a load length of up to 8 meters, a diameter of up to 533 mm, a limited lifting height of only 1.3 meters, and sea states up to Force 3—changes everything. In these conditions, the main challenge is not the weight, but the controllability. A long cylindrical load can easily turn into a pendulum if rigid spatial stabilization is not provided.
The crane’s design follows an electro-hydraulic configuration. The bridge travels along runway rails throughout the hold, the trolley moves across the bridge, and lifting is performed by a telescopic mechanism with a central hydraulic cylinder. Travel speeds are intentionally moderate: up to 2 m/min for hoisting, up to 3 m/min for the trolley, and up to 6 m/min for the bridge. This is not about speed—it is about total control.
The key element is the load stabilization system. The lifting mechanism is fitted with pivoting arms equipped with rollers and limiters. During hoisting, these arms bear against the item, and in the uppermost position, they lock it in place, eliminating sway and rotation. This solution is purely mechanical and therefore highly reliable: geometry and physical stops are more effective than any attempt to “catch” oscillations through electronics.
Bridge and trolley travel are driven by independent hydraulic wire rope winches. System pressure reaches 25–30 MPa, with an installed power of approximately 13 kW. Power is 380V three-phase, with provision for connection to two feeders featuring automatic transfer switching. To handle failures, pump redundancy is implemented, along with the capability for manual pump operation. For marine equipment, this is not redundancy—it is a requirement for survivability.
The “stowed” mode deserves special mention. In this position, the bridge is secured by hydraulic cylinders, the trolley is lashed, and the lifting mechanism is locked. The crane ceases to be a moving system and becomes part of the hold’s structural framework—a mandatory condition for sea transits and offshore operations.
Compared to standard industrial overhead cranes, this machine operates in far harsher conditions: confined space, vibration, marine atmosphere, and temperatures ranging from −32 to +30 °C. Furthermore, the design was executed in accordance with import substitution policies: the steel structures, hydraulics, and control system were developed and manufactured by a domestic enterprise. This ensures independence from foreign suppliers and simplifies maintenance.
As a result, the 3t overhead manipulator crane is not just a compact lifting device, but a specialized mechanism for precise logistics within a vessel’s hull. Minimal clearances, rigid kinematics, and sophisticated securing—everything is dedicated to one task: moving heavy cargo safely where space and conditions leave no room for error.
| Parameter | Value |
|---|---|
| Crane lifting capacity (SWL), t | 3 t |
| Lifting height, m | 1,3 m |
| Bridge travel, m | 8,62 m |
| Trolley travel, m | 4,54 m |
| Hoisting speed (adjustable), max, m/min | 2 m/min |
| Trolley travel speed (adjustable), max, m/min | 3 m/min |
| Bridge travel speed (adjustable), max, m/min | 6 m/min |
| Ambient temperature, °C | -32°…+30° |
| Vessel heel (either side), max, ° | 5° |
| Vessel trim (bow or stern), max, ° | 2° |
| Sea state, max, Beaufort scale | 3 |
| Roll amplitude, max, ° | 4,3° |
| Pitch amplitude, max, ° | 1,5° |
| Ambient temperature, °C | -45°…+30° |
| Vessel heel (either side), max, ° | 15° |
| Vessel trim (bow or stern), max, ° | 5° |
| Roll amplitude, max, ° | 40° |
| Pitch amplitude, max, ° | 10° |
| Current type and voltage | AC 50 Hz; 380V ±10% |
| Installed motor power, kW | 13.25 kW |
| Protection class (IP rating) | IP55 |
| Crane control | via pendant control attached to the trolley |
| Hydraulic fluid type | Hydraulic oil AUP (TU 38.1011258-89) |
| Total HPU oil volume, l | 90 l |
| Hydraulic system operating pressure, MPa | 18 MPa |
| Total crane weight, max, t | 3,4 t |
