Hydraulic rescue boat davits are a core focus for our company. Their drive system ensures smooth and controlled launching and recovery even in stormy conditions, combining high power with compact dimensions and jerk-free operation. We offer various types of davits to our customers: A-frame, slewing arm, overhead, and telescopic models.

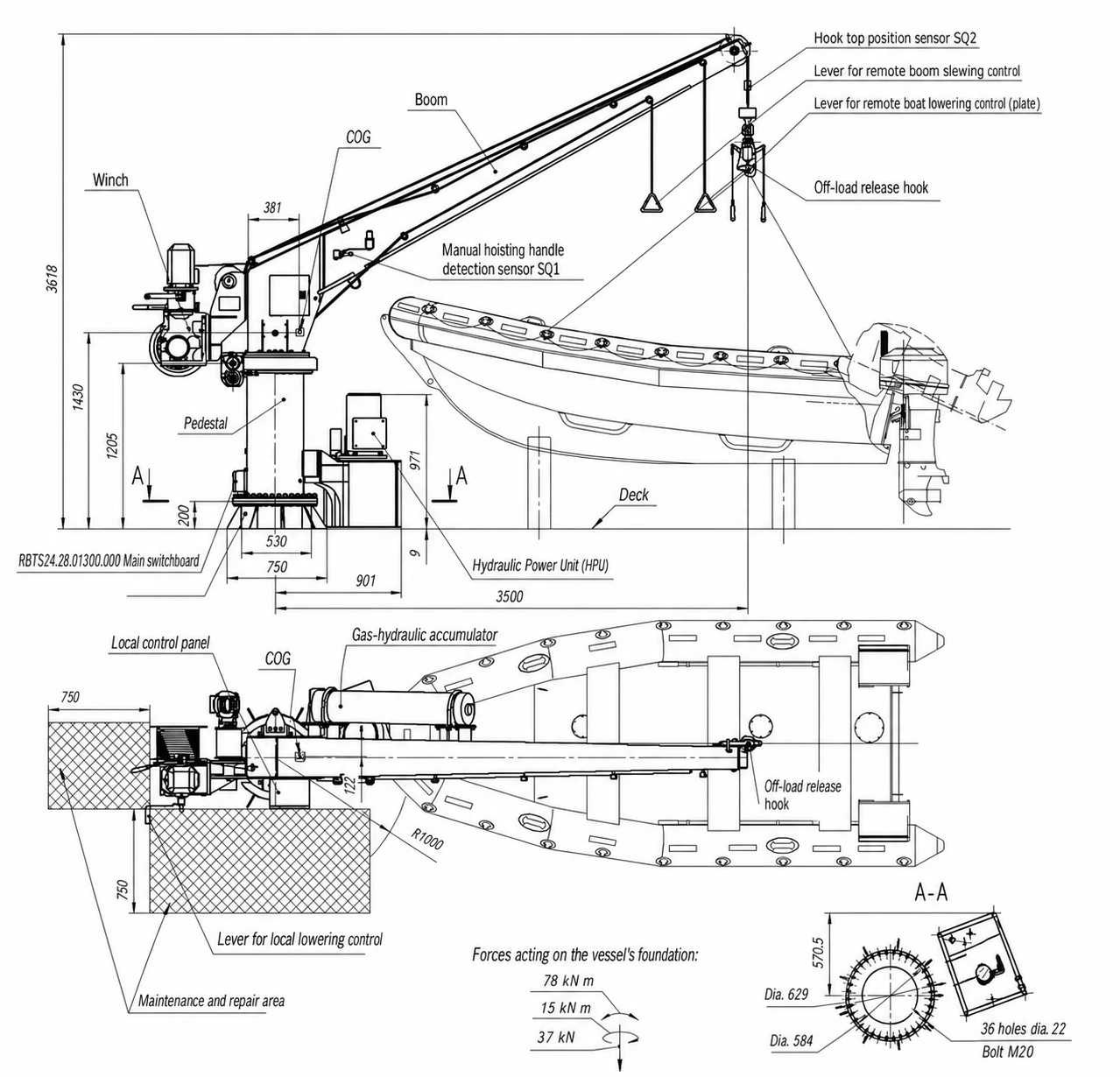

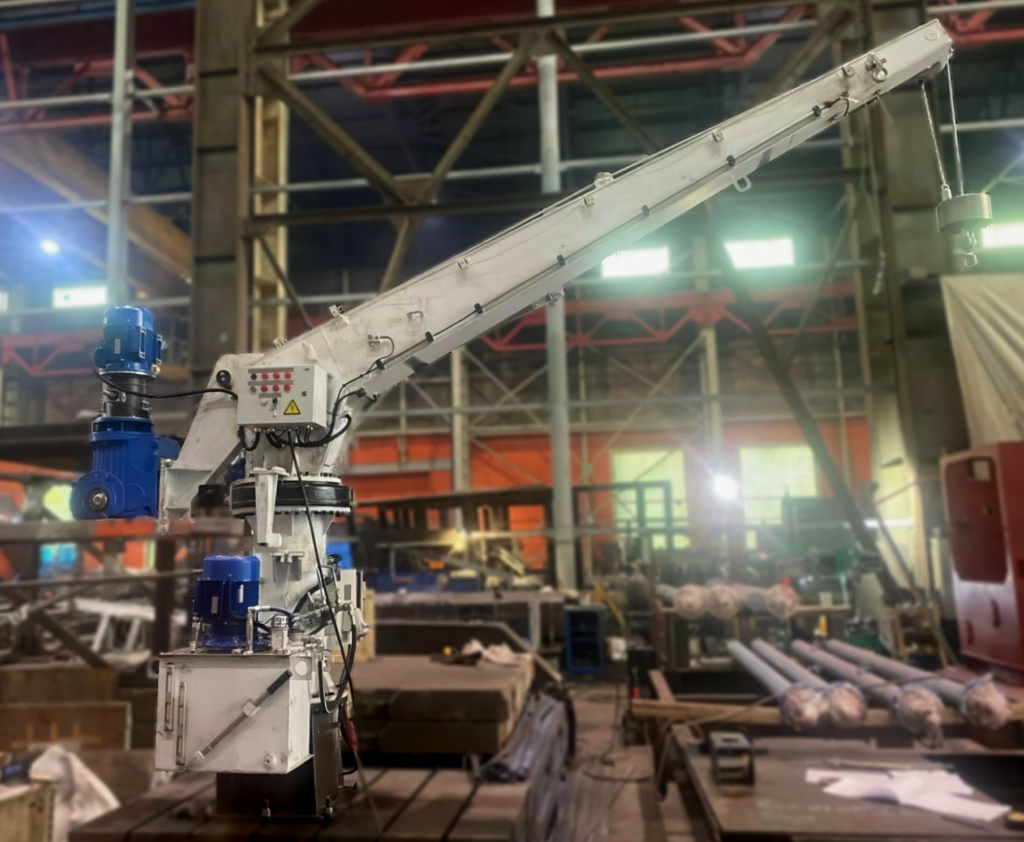

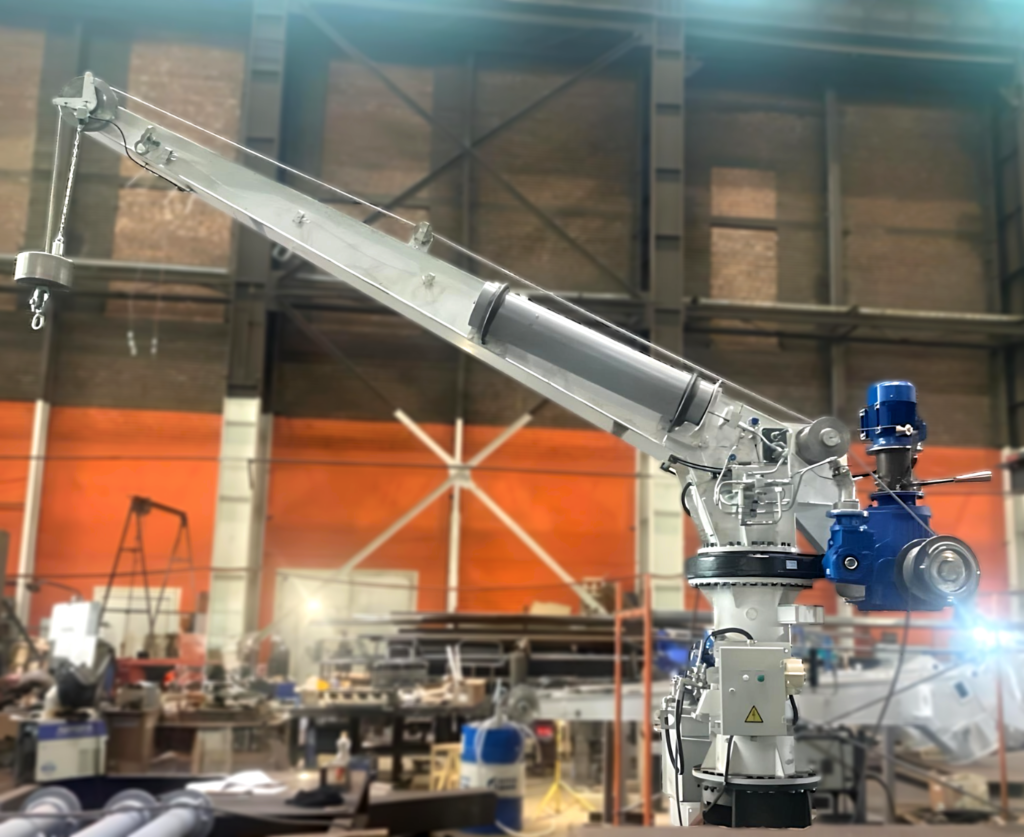

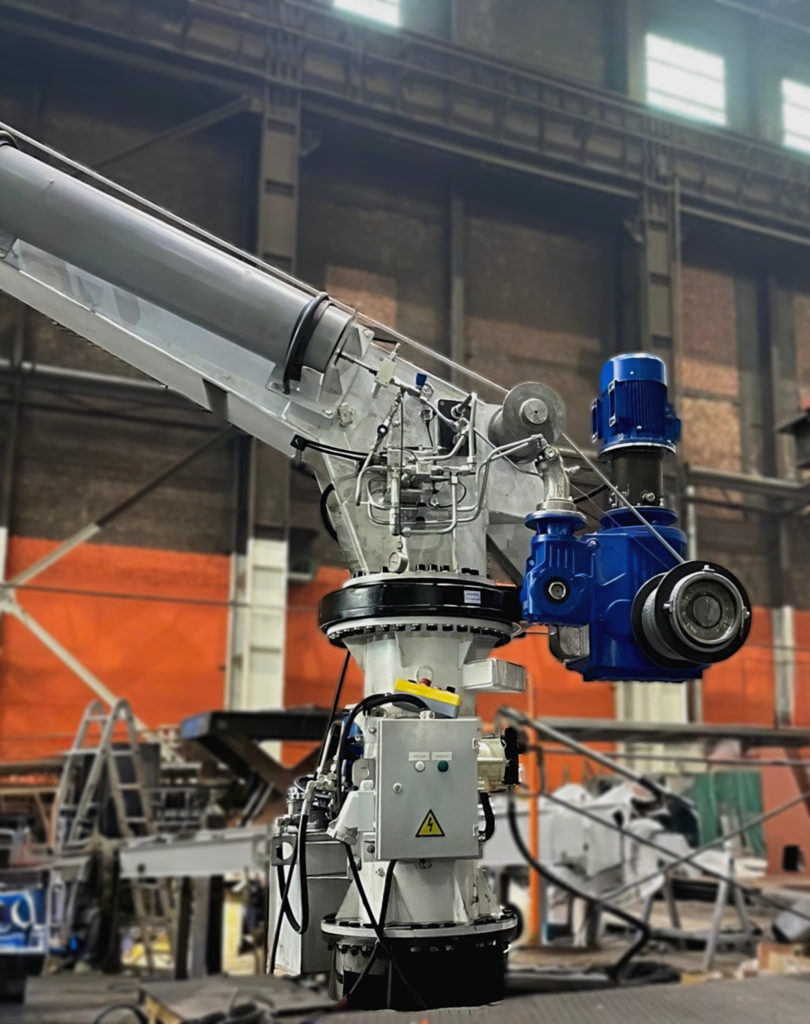

The 1.2TX3.5M model is a slewing-arm marine davit designed for the launching and recovery of rescue boats weighing up to 1,200 kg. It guarantees safe and stable operation thanks to its integrated position sensors. Flexible control is provided via a local console or remotely — using levers on the arm or directly from within the boat. We offer both a complete “davit + boat” package and the supply of the davit unit alone to meet your specific requirements.
Loading model
(highlighted in turquoise)

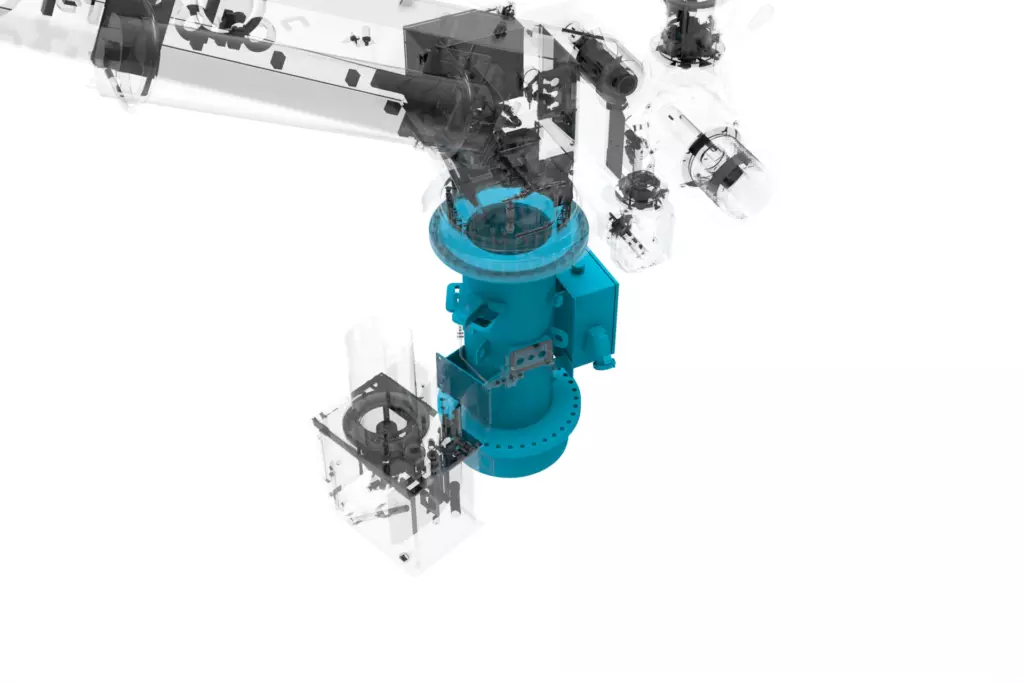

The pedestal features a fully welded “column-foundation” design and serves as a reliable base for mounting the slewing system. Its lower part is securely welded to the deck, guaranteeing long-lasting and stable operation of the entire mechanism.
(highlighted in turquoise)

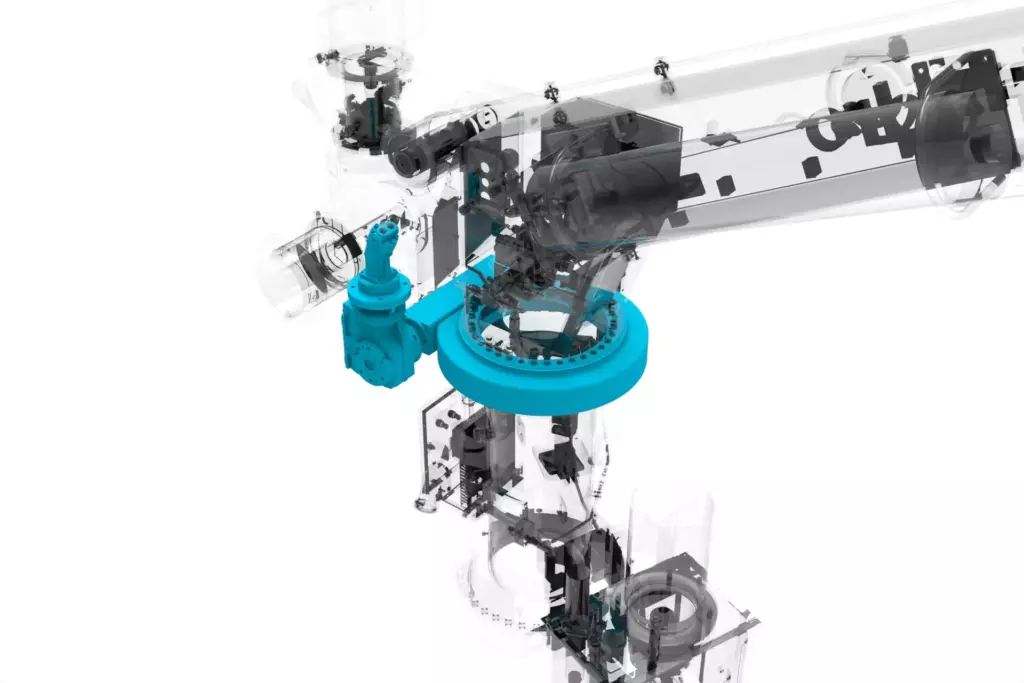

The slewing system, driven by a worm gear, bevel gearbox, and hydraulic motor, provides davit rotation up to a specified angle of 300°. This design ensures smooth, precise, and reliable positioning under operational conditions.
(highlighted in turquoise)
The boom is a welded L-shaped structure mounted on the slewing system. Its 3.5-meter outreach provides the necessary operating range, while the integrated hydro-pneumatic accumulator and remote slewing control handles ensure autonomy and convenient process management.
(highlighted in turquoise)

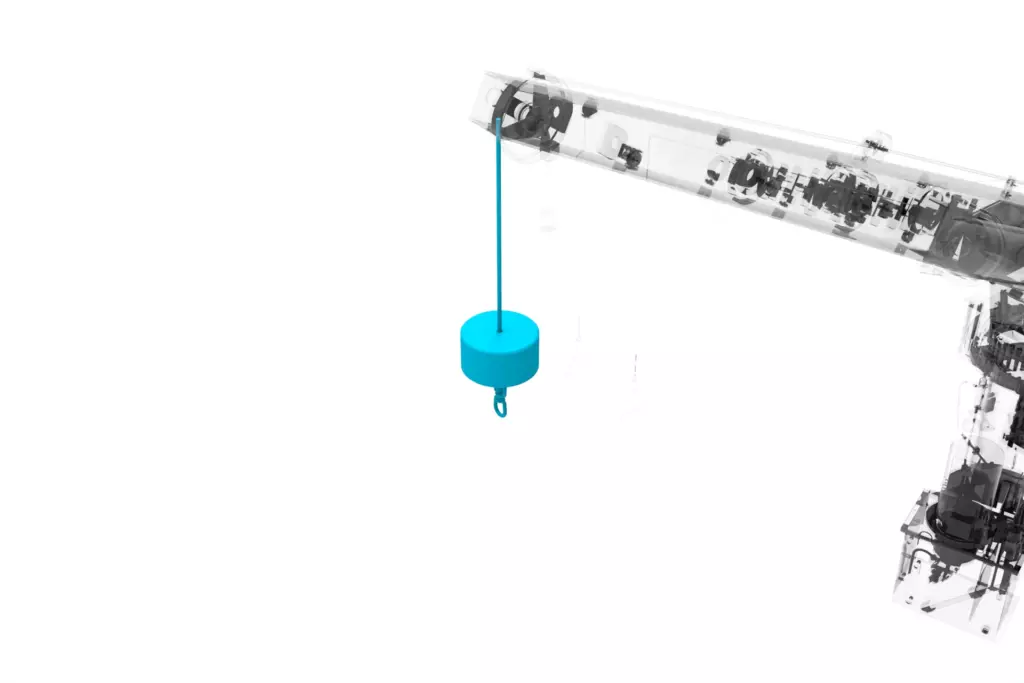

The suspension assembly includes a wire rope with a poured socket, a swivel, an overhauling weight, and an automatic release hook. The swivel prevents the wire rope from twisting under load, while the release mechanism guarantees the timely and safe release of the boat or liferaft upon water entry.
(highlighted in turquoise)

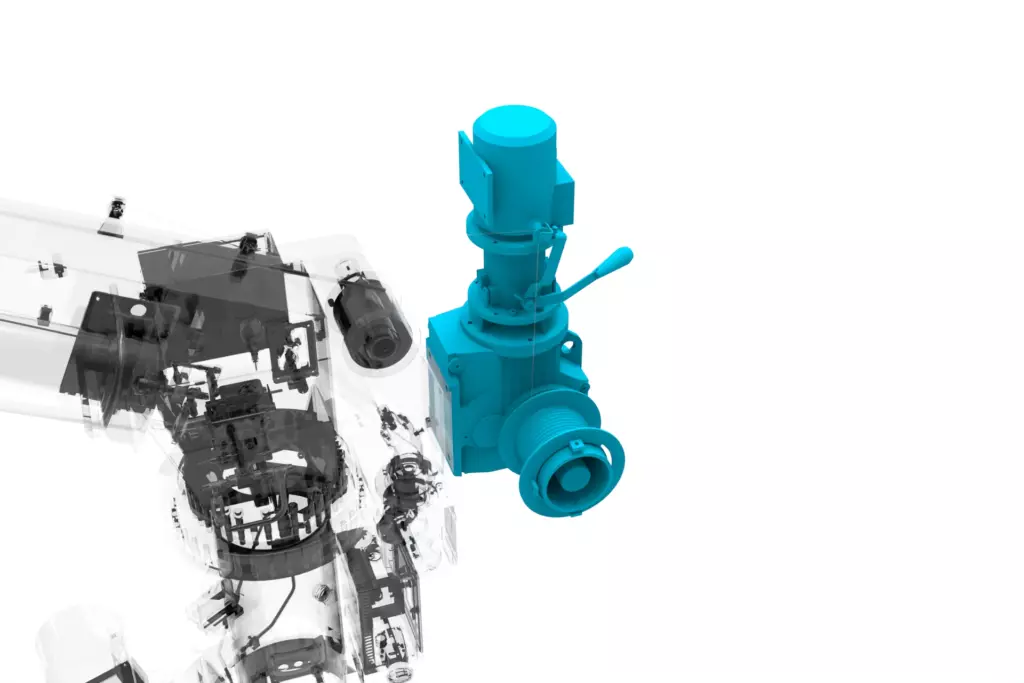

The winch, featuring a wire rope drum, a braking unit, a gearbox, and an electric motor, is mounted to the boom via a bracket. This compact and powerful design ensures reliable and smooth operation during launching and recovery.
(highlighted in turquoise)

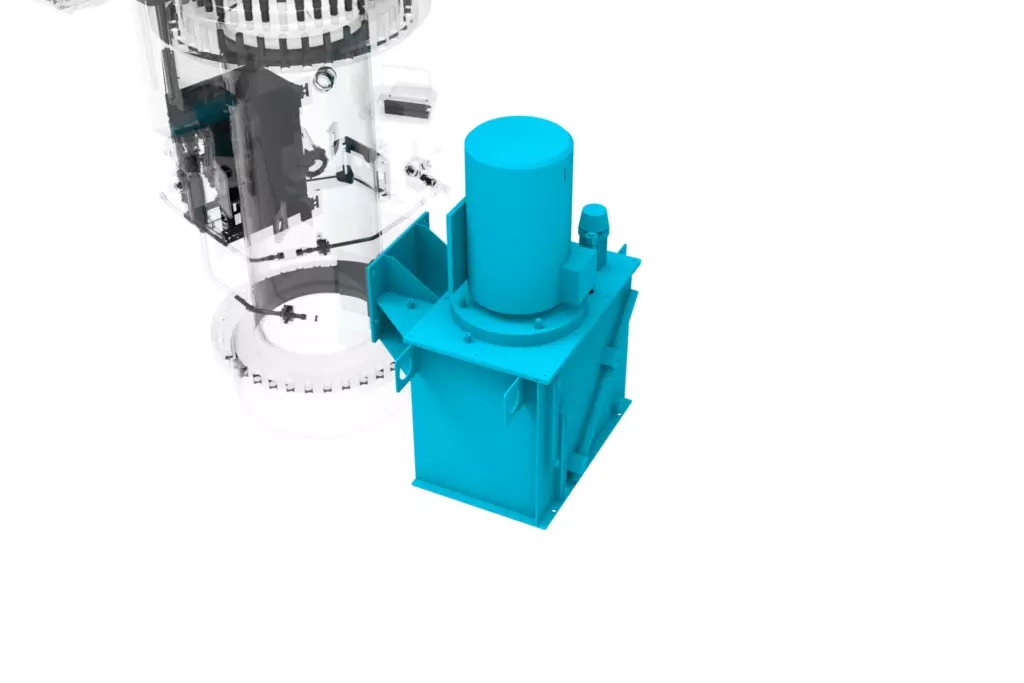

The hydraulic power unit, mounted on the pedestal, provides a centralized and reliable power supply to all hydraulic actuators of the davit, ensuring stable and synchronized operation of the entire system.
(highlighted in turquoise)

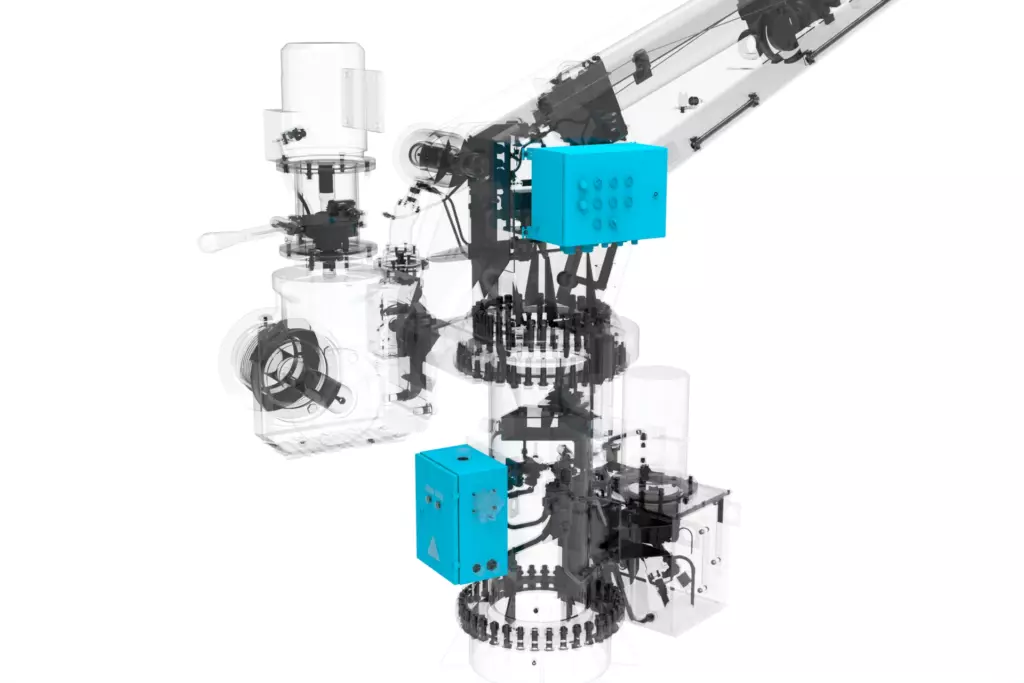

The steel-enclosed control cabinet centralizes all electrical and hydraulic components, as well as the pump unit controls and indicator systems. It is equipped with connectors for the power supply and a portable console, ensuring convenient and safe control of the davit operations.
The following documentation provided with the davit:
| Document | Quantity |
|---|---|
| Product Data Sheet | 1 |
| Installation, Commissioning, and Adjustment Manual | 1 |
| Operating Manual | 1 |
| Onboard Test Program and Methodology | 1 |
| Declaration of Materials (DM) | 1 |
| Supplier’s Declaration of Conformity (SDoC) | 1 |
Why It Is More Complex Than It Seems
Imagine a massive vessel rolling in the waves with a 20-degree heel, wind lashing your face, and the deck alternately dropping away and surging upward. In these conditions, you must not only stay on your feet but also safely launch a heavy rescue boat weighing as much as a small car. A standard crane simply won’t do—you need specialized equipment, a true maritime “skeleton” capable of operating amidst severe rolling and salt spray.
We are talking about the Launching and Recovery System (LARS)—the unsung hero of every maritime rescue operation. This structure allows a rescue boat weighing up to 1,200 kilograms to quickly depart from the vessel or return safely aboard.
What It Is Made Of
The engineers’ primary goal was to ensure the device could withstand both storms and Arctic cold. Therefore, the structure is based on high-strength 09G2S steel—the same metal used for icebreaker hulls and rugged northern pipelines. It does not become brittle in temperatures as low as -40°C and withstands fatigue from constant vessel vibration.
The entire structure consists of a three-meter L-shaped boom mounted on a powerful column (known as a “pedestal”). The pedestal is welded directly to the deck, becoming an integral part of it. No compromises: only welding, only secure attachment.
Hydraulic Muscles and Electric Nerves
Lifting a ton of cargo aboard is no job for the weak. The muscles of this device are hydraulic. AUP oil under a pressure of 16 megapascals (equivalent to a passenger car balancing on the area of a small coin) drives the hydraulic motors, powering the winch and the slewing mechanism.
The speed is not that of a race car, but it is impressive: the boat can be raised or lowered at a rate of 18 meters per minute. Furthermore, the boom with a load on the hook can slew almost in a full circle—up to 300 degrees. This is sufficient to retrieve the boat from any position and deliver it precisely to the launch point.
A Clever “Pin” and Smart Suspension
The most interesting detail is hidden at the end of the wire rope—the automatic release hook. As soon as the boat touches the water and the rope slackens, the mechanism triggers and releases the hook. The crew doesn’t need to unhook anything manually; the system handles it automatically. This is critical when every second counts and a wave is about to slam the boat against the hull.
To prevent the wire rope from twisting due to wind or movement, the system includes a swivel—a clever joint that dampens rotation. Additionally, an overhauling weight on the suspension ensures the rope remains taut at all times and does not become tangled.
How to Control It
The control cabinet and a portable console command the entire process. A ship’s electrician or the boat coxswain takes the console, connects it to the system, and gains full control. No complex levers— only intuitive buttons and indicators.
The developers have also included “foolproof” protection. The system features automatic limit switches that prevent the boat from crashing into the boom or hitting the deck. If anything goes wrong, the emergency stop will trigger. All electrical components are protected to the IP56 standard, meaning they are “resistant to both dust and water”
Not Just a Crane, but a Lifeline
Such devices are installed on all modern vessels equipped with rescue boats. This is not just machinery; it is the final frontier of safety. In storms, fog, or darkness, the launching and recovery system must perform flawlessly. This is why its installation permits no margin of error, and every bolt and weld is verified against dozens of regulatory documents of the Russian Maritime Register of Shipping.
This is how complex engineering evolves into a simple and reliable device that saves lives every day where the sea meets the sky.
| Parameter | Value |
|---|---|
| Safe Working Load (SWL), kg | 1200 kg |
| Hook outreach, m | 3.5 m |
| Hoisting/lowering speed, m/min | not less than 18 m/min |
| Maximum hoisting/lowering height, m | 12 m |
| Slewing speed without load, rpm | not less than 1.25 rpm |
| Hydraulic fluid | AUP hydraulic oil (TU 38.10112 58-89) |
| Power consumption, kW | not more than 7.5 kW |
| Slewing angle, ° | not more than 300° |
| Davit weight, kg | 2150 kg |
| Power supply parameters | 400V, 50 Hz |
| Operating hydraulic pressure, MPa | not more than 16 MPa |
The equipment complies with the following requirements:
