Environmental operating conditions for the telescopic ROV LARS correspond to climate category OM1 according to GOST 15150-69, at an ambient air temperature from -30 °C to +40 °C and 98% relative humidity at +35 °C.
Environmental storage and transportation conditions for the LARS correspond to category Zh1 according to GOST 15150-69, at an ambient air temperature from -40 °C to +50 °C.
The telescopic ROV LARS maintains its operational performance under the following conditions:
The telescopic ROV LARS maintains its structural integrity and operational performance after exposure to survival conditions:
On-deck arrangement of the telescopic ROV LARS:
The telescopic ROV LARS is designed for:

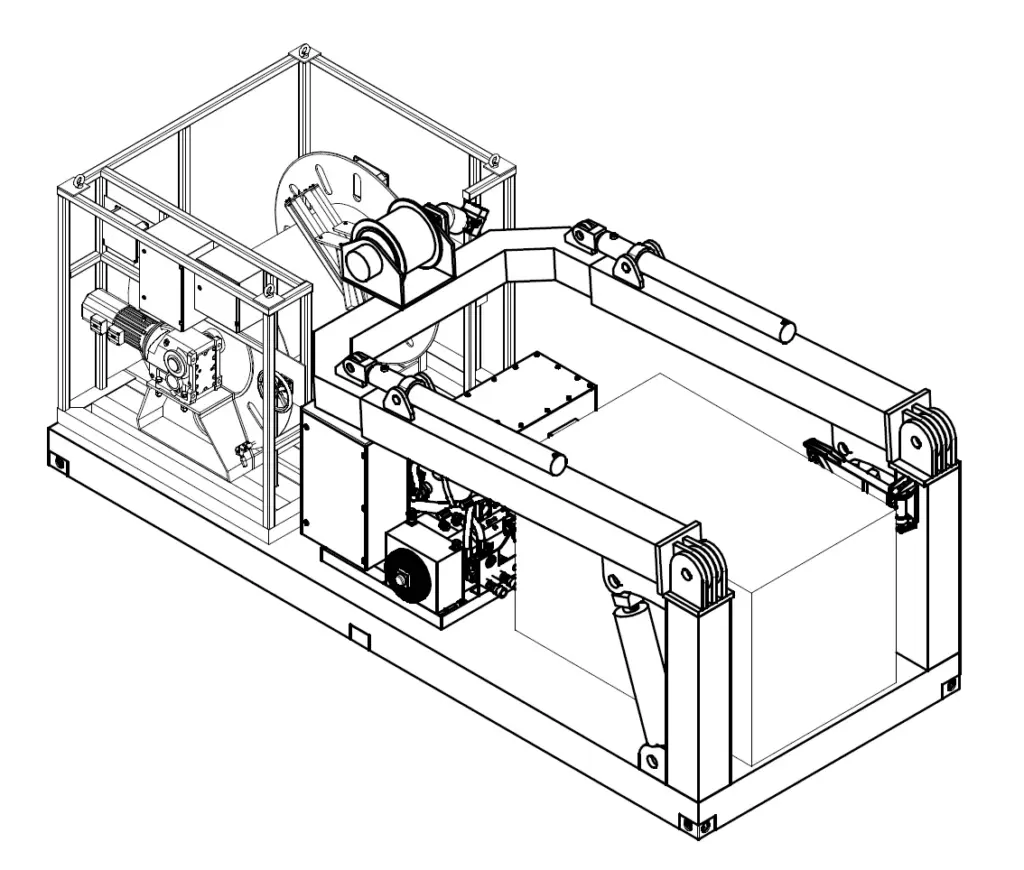

Telescopic ROV LARS: Precision Launch and Recovery for Deep-Sea Operations
Advanced On-Deck Technology
The telescopic LARS (Launch and Recovery System) for ROVs (Remotely Operated Vehicles) converts complex offshore operations into a predictable and safe process. The system ensures controlled launch and recovery of the deep-sea vehicle from the vessel deck to the water and vice versa, independent of wave and wind conditions. Smooth boom luffing and the telescopic design deliver positioning accuracy that conventional cranes cannot guarantee.
Engineered Precision
The hydraulic system and pivoting davit enable synchronized control of launch and recovery operations. Even during vessel motions, the LARS maintains a stable suspension point without shock loads. The operator controls the process from a fixed control station located outside the hazard area, while integrated lighting and instrument displays ensure safe operation during night hours.
Adaptability and Flexibility
The telescopic LARS design allows for easy modifications: integrating a stabilizing docking frame or wireless control converts the system into a versatile tool for various scientific research applications. This approach enables rapid adaptation to new research requirements without extensive structural modifications.
Reliability and Support
The telescopic ROV LARS combines structural strength, positioning accuracy, and resistance to survival environmental conditions. Production and service are provided by Izhora Hydrosystems LLC, ensuring safe operations and allowing operators to focus fully on subsea tasks. RS (Russian Maritime Register of Shipping) certification and OEM warranty ensure long-term equipment operation.
| Component | Quantity |
| LARS Structure, comprising: | 1 |
| – LARS platform | 1 |
| – A-frame | 1 |
| LARS Hydraulic System, comprising: | 1 |
| – Electro-hydraulic power unit (HPU) | 1 |
| – Hand pump | 1 |
| – Double-acting A-frame hydraulic cylinder | 2 |
| – Air oil cooler | 1 |
| – Electric oil heater | 1 |
| – Instrumentation and indicator package | 1 |
| – Hydraulic valve and manifold assembly | 1 |
| – Fitting, piping, and high-pressure hose (HPH) assembly | 1 |
| LARS Electrical System, comprising: | 1 |
| – Main switchboard (MSB) | 1 |
| – Floodlights | 2 |
| – Local light fixtures | 2 |
| – Internal cable network | 1 |
| – External power supply cable, 50 m | 1 |
| Cargo Winch, comprising: | 1 |
| – Winch frame | 1 |
| – Drum | 1 |
| – Hydraulic drum drive | 1 |
| – Spooling device | 1 |
| – Brake | 1 |
| – Wire rope | 1 |
| Pivoting Davit, comprising: | 1 |
| – Davit foundation | 1 |
| – Boom | 1 |
| – Manual self-locking slewing mechanism | 1 |
| – Suspension unit | 1 |
| – Roller assembly for ROV umbilical | 1 |
| LARS Spare Parts, Tools, and Accessories (STCW) Package, comprising: | 1 |
| – Four-leg lifting sling | 1 |
| – Sea-fastening equipment for LARS deck mounting | 1 |
| – LARS protective cover | 1 |
| – HPU protective cover | 1 |
| – Spare high-pressure hose (HPH) kit | 1 |
| – Component-level individual STCW kits | 1 |
| Parameter | Value |
| Model type | Telescopic LARS |
| Safe Working Load (SWL) | 3.5 t |
| Power consumption | 40 kW |
| LARS weight | 8,000 kg |
| Total weight of LARS with installed equipment | 16,000 kg |
| Dimensions of telescopic ROV LARS in transport configuration | Comply with GOST R 53350-2009 requirements for size 1CX containers |
Optional:
The OEM standard STCW kit is configured for 10 years of operation. Additional spare parts can be specified and supplied under a separate agreement with the customer.
| Document | Quantity |
| Technical passport | 1 |
| Installation and operation manual | 1 |
| STCW list | 1 |
| Factory acceptance test (FAT) report | 1 |
The telescopic ROV LARS is supplied with one (1) copy of the RS (Russian Maritime Register of Shipping) Certificate.
The telescopic ROV LARS complies with the requirements of the following regulatory documents:
Note:
The complete telescopic ROV LARS is manufactured by Izhora Hydrosystems LLC.
