Telescopic LARS, SWL 7t (Technical supply specification)


1. General Data (Operating Conditions)

The telescopic LARS ensures reliable operation under the following sea state and environmental conditions:

  • Ambient air temperature: -30ºC to +35ºC
  • Water temperature: -2ºC to +32ºC
  • Relative humidity: 98% at +35ºC
  • Shipboard vibration
  • Intermittent seawater splashing of components

2. Purpose

Interoperation with a winch for launching and recovering equipment from/to the vessel.

7 t Telescopic LARS Outline Dimensions (stowed/raised position)
7 t Telescopic LARS Outline Dimensions (stowed/raised position)

About

Innovations in Marine Launch and Recovery Systems

Modern vessels demand high standards of safety and operational efficiency for deck equipment. The telescopic LARS combines operational convenience with advanced engineering solutions, optimizing launch and recovery processes on board. These systems deliver precise control and reduce operator workload, which is critical in harsh offshore environments.

Design and Functionality

The telescopic LARS features a retracting boom design for compact stowed positioning inside the hangar and extension outboard through the hatch cover. An optimized sheave arrangement and docking head ensure smooth, safe umbilical routing, as well as easy maintenance access without equipment disassembly.

Control and Safety

The system is operated via a wireless control unit, providing increased operational flexibility and safety. The LARS is equipped with redundant limit switches that automatically respond to overload or equipment contact, protecting both the system and the operator. These solutions minimize risks and enhance operational reliability.

Lighting and Signaling Elements

For operation in restricted visibility, the LARS features floodlights to illuminate the working area and a combined horn and siren for audible signaling. These components enable precise process monitoring and ensure safe, ergonomic working conditions, particularly during nighttime operations or in severe weather.

Materials and Equipment Protection

The LARS is constructed from marine-grade materials engineered to withstand severe offshore environments. Electrical equipment features a high ingress protection class, and the coating system is applied in accordance with customer specifications. These solutions ensure long-term durability and minimize maintenance requirements, maximizing operational uptime.

Manufacturer

The telescopic LARS is engineered and manufactured by Izhora Hydrosystems LLC. With over a decade of expertise in developing advanced marine launch and recovery systems and hydraulic equipment, the company integrates proven technologies and engineering solutions, combining innovation with field-proven reliability in every product.


3. Scope of Supply

3.1. 7 t Telescopic LARS

3.1.1  Equipment Structure

ComponentQuantity
Telescopic LARS assembly1 pc.
Telescopic section wireless control unit1 pc.
LARS hydraulic system filling and draining tools1 set
Electrical equipment (enclosures, panels, connectors) for vessel integration1 set
Manufacturer standard spare parts1 set
Hydraulic schematic and external connection diagram1 set
Electric drive connection and wiring diagram1 set
Technical description and operating manual (Russian language)1 set
Installation manual (Russian language)1 set
Instruction plates, warning signs, and labels (Russian language)1 set
Counter-flanges for vessel piping connection1 set

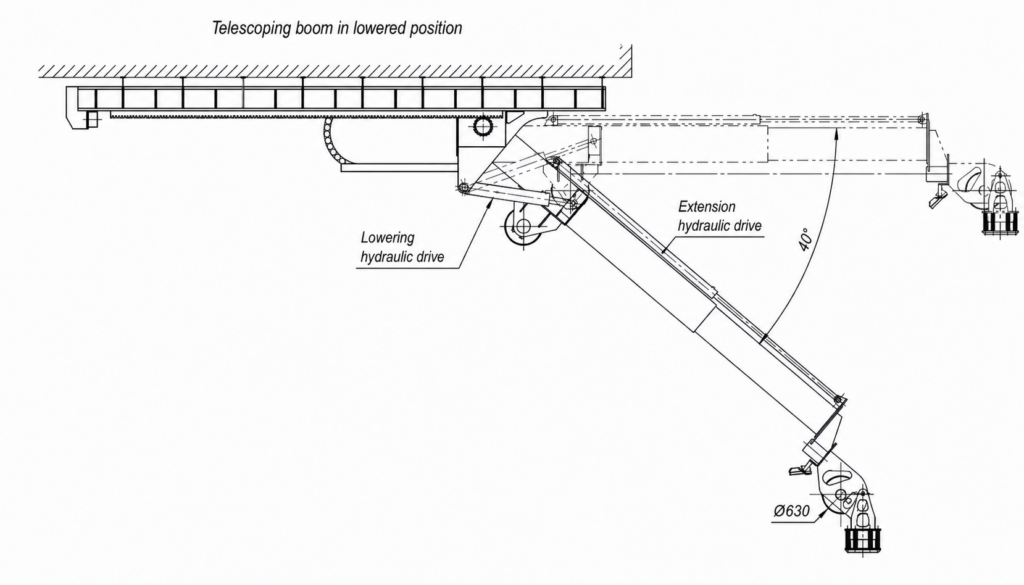

7 t Telescopic LARS Outline Dimensions (extended/lowered position)
7 t Telescopic LARS Outline Dimensions (extended/lowered position)

3.1.2  Technical Specifications

ParameterValue
Model typeTelescopic LARS
Safe Working Load (SWL), calm water7 t
Umbilical diameter12 mm
Umbilical sheave diameter600 mm
Hydraulic system nominal pressure25 MPa
LARS weight, excluding HPU14,200 kg
LARS weight, including electrical and hydraulic equipment14,400 kg
Maximum outboard outreach3.6 m
LARS stroke (extension)6 m
LARS installation height (deck plating to hangar deckhead stiffeners)5.4 m
Total LARS height, including docking head2.55 m
Duty cycleModerate, 25% intermittent factor (S3-25%)

3.1.3  Spare Parts Kit (Spare Parts, Tools and Alternates)

Manufacturer standard spare parts kit for 2-year operation.

3.1.4 Documentation

DocumentRemarks
Product passport / Data book1 set
Installation and operating manuals1 set
Spare parts list1 set
Factory Acceptance Test (FAT) report1 set
Onboard testing program and procedure1 set

3.1.5 Certificates

RS Certificate (RMRS Certificate) according to form 6.5.30.

7 t Telescopic LARS Outline Dimensions (front view)
7 t Telescopic LARS Outline Dimensions (front view)

4. Additional Requirements

  • All electrical equipment features IP 56 ingress protection.
  • All materials are engineered for operating temperature conditions (-30 ºC to +35 ºC).
  • Coating system: coating system specifications and RAL color code shall be subject to Customer approval.
  • Hydraulic system fluid: AUP grade spindle oil.
  • Hydraulic fluid cleanliness class: minimum class 12 in accordance with GOST 17216-71.
  • Type: hydraulically driven retracting telescopic LARS.
  • The LARS is mounted on the hangar deckhead (T-bar structural framing) and extends outboard through the hatch cover.
  • The LARS is equipped with a swivel sheave arrangement and a dedicated docking head for water sampler rosette operations, alongside a sheave arrangement for umbilical routing to the winch.
  • The LARS lowers to deck level to provide maintenance access to the umbilical sheave and docking head.
  • The sheave arrangement allows umbilical re-reeving without terminating or removing the umbilical connector.
  • LARS operations are controlled via a portable belly-box type wireless control unit.

The LARS is equipped with:

  • Redundant limit switches (automatic cut-out switches) that trip upon:
    a) LARS overload exceeding 10% of the rated SWL in calm water and at least 25% under sea state conditions;
    b) Docking head contact with the rosette (or other submerged equipment).
  • A combined horn and siren activated via the wireless control unit.
  • A floodlight providing water surface illumination within the LARS operational area.

The LARS is powered via the vessel hydraulic system at a rated pressure of 250 bar and a rated flow not exceeding 200 l/min.


5. Manufacturer

Izhora Hydrosystems LLC


6. Warranty Period

12 months from the date of delivery, unless otherwise provided by the contract.
