Overhead hydraulic launching and recovery systems for boats and tenders save deck space and guarantee reliable operation. The hydraulic drive provides smooth and full control during launching and recovery, maintaining stability even in stormy conditions to enhance operational safety.
Telescopic LARS are mounted to the overhead, which saves usable space and increases the structural stability of the entire system. Their movable frame, equipped with one or two telescopic beams, ensures smooth and reliable performance during the launching and recovery of craft.

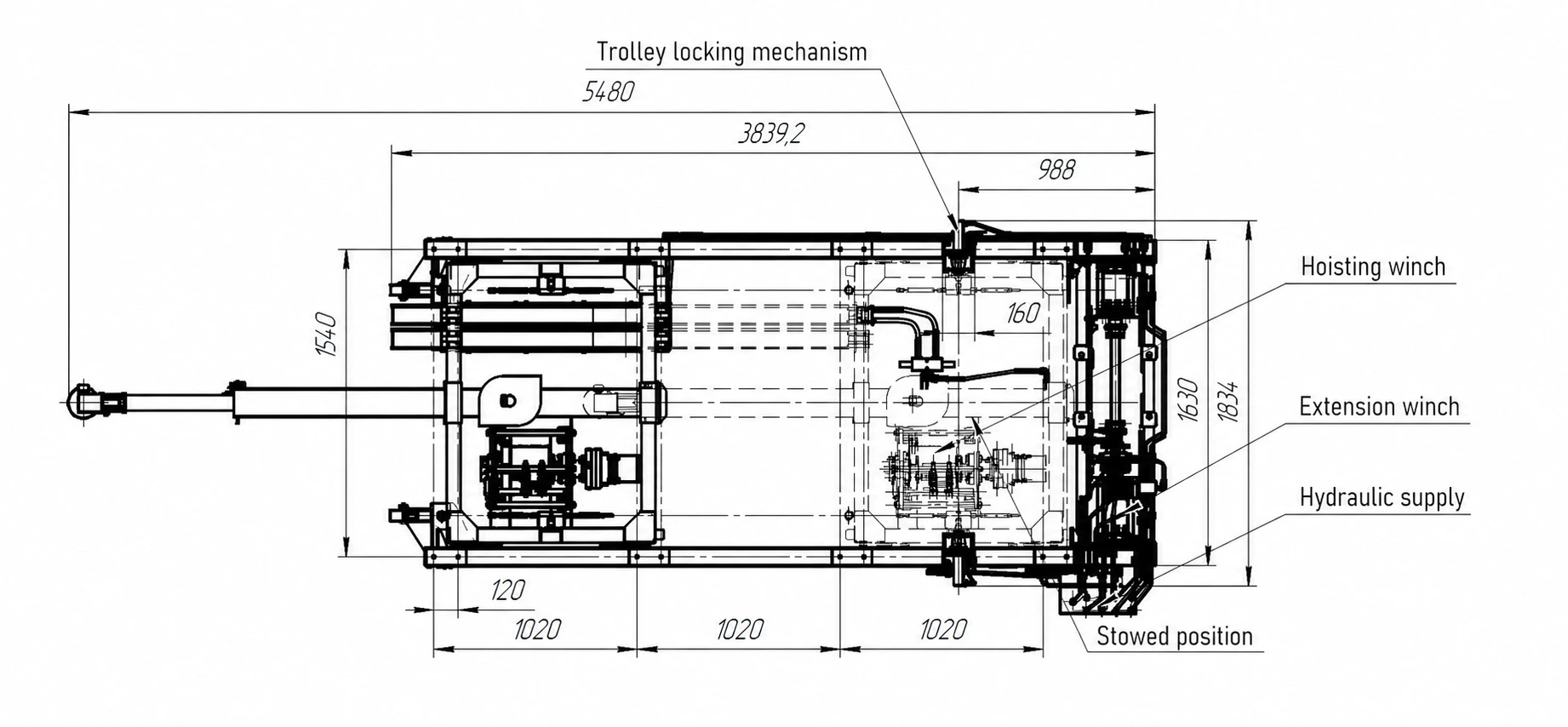

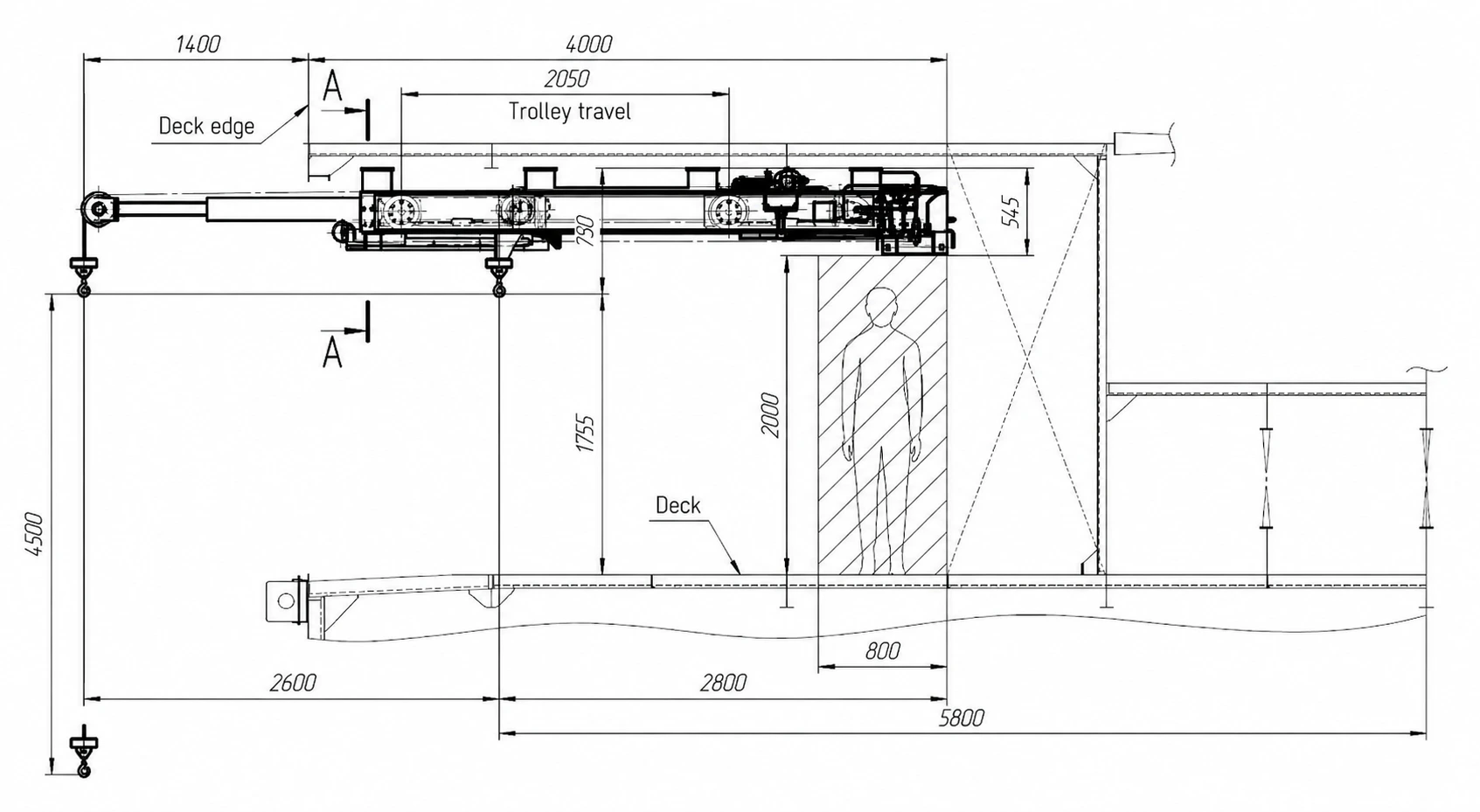

The 0.65TX2.6M model is a single-beam telescopic LARS for boats or jet skis weighing up to 650 kg. It allows the craft to be extended 1.4 m from the vessel’s side at a full outreach of 2.6 m. Overhead mounting at a height of 2 m or more ensures operational safety, while the electric winch with its wire rope system guarantees precise and smooth carriage movement.
Loading model
(highlighted in turquoise)

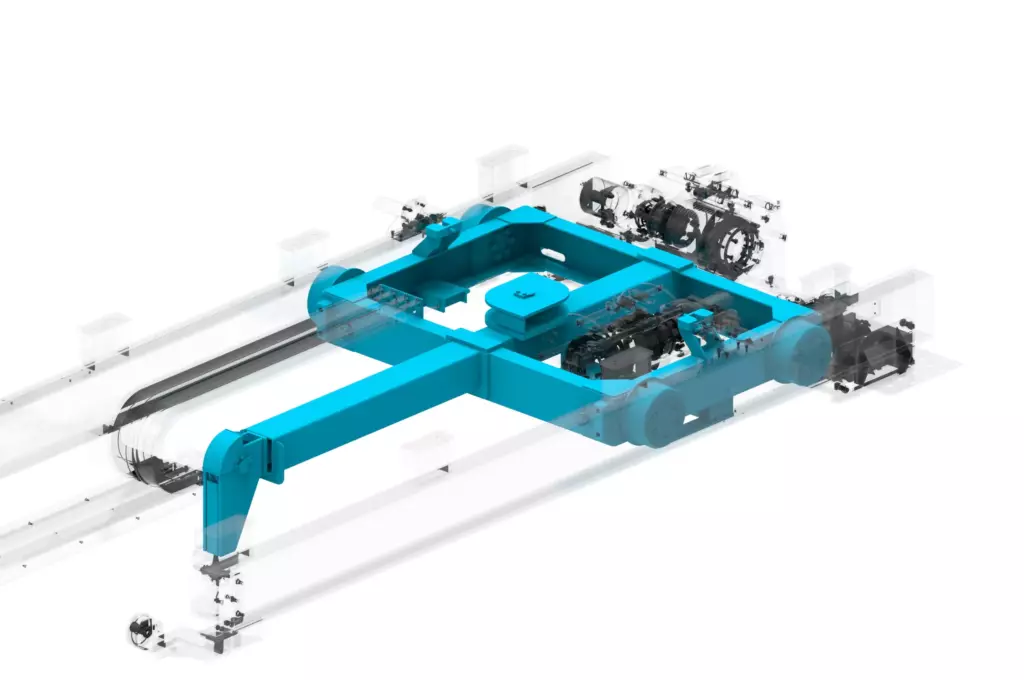

The boom is a box-section steel structure with an integrated hydraulic cylinder, which protects the mechanism from external influences. The telescopic system provides an outreach of up to 2.6 m and a safe craft extension of 1.4 m from the vessel’s side, all while maintaining compact dimensions. The design is guaranteed to withstand loads up to 650 kg and remains stable in stormy conditions.
(highlighted in turquoise)

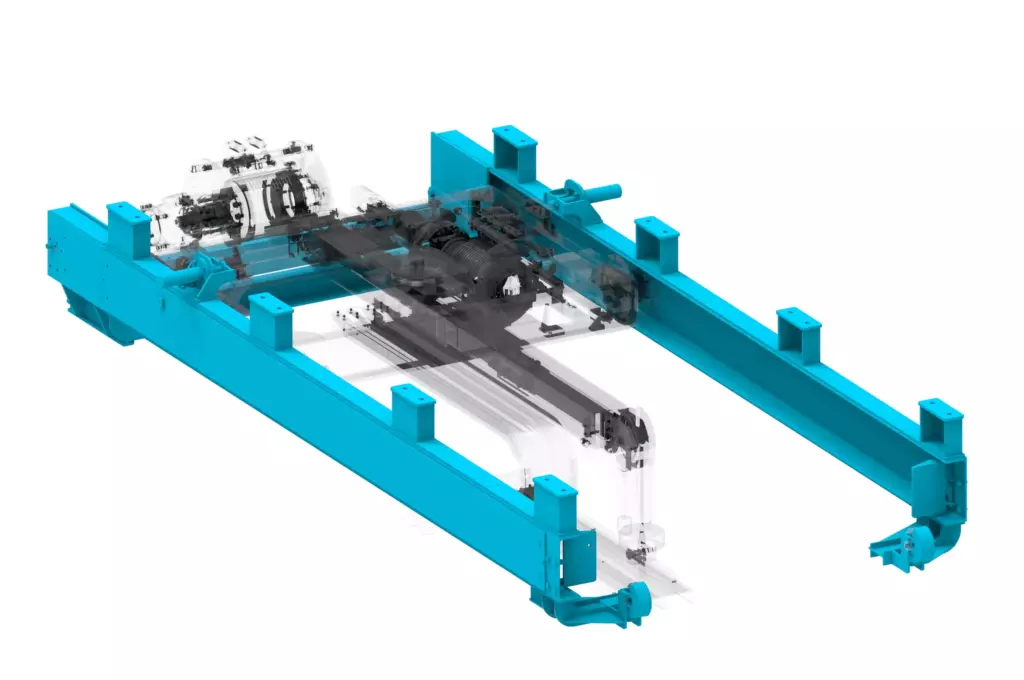

The base is a welded steel structure featuring a mounting system. It is installed overhead at a height of two meters or more to ensure personnel safety. The base serves as a mounting platform for all necessary equipment: the carriage travel winch, the wire rope system, the cable carrier, and electrical components. This solution allows for significant deck space savings while maintaining operational convenience.
(highlighted in turquoise)

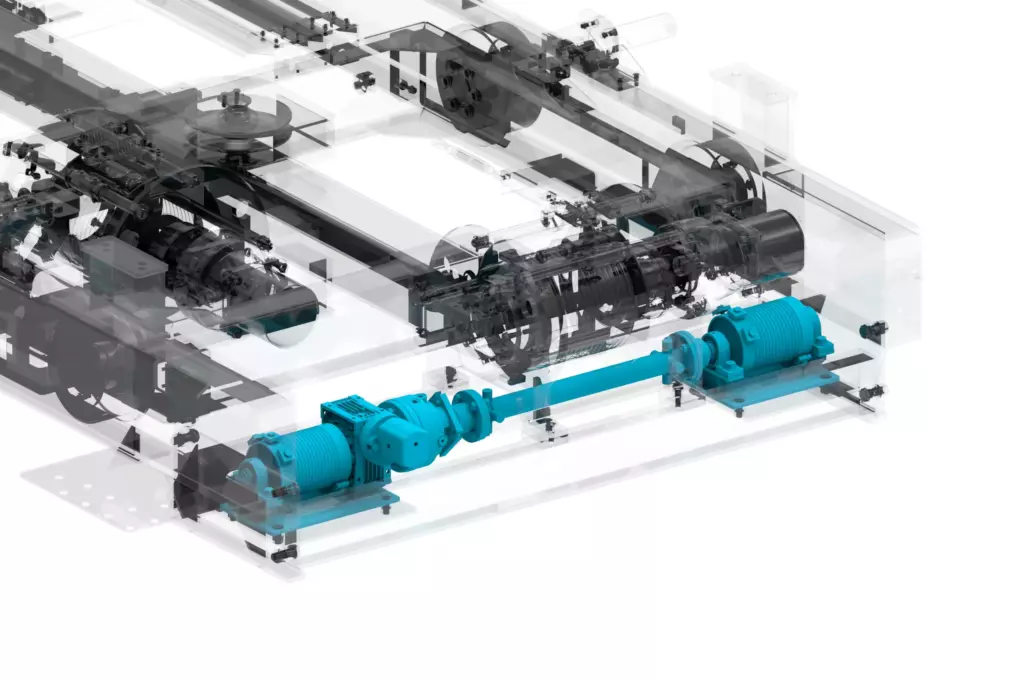

The carriage travel winch is driven by a gear hydraulic motor, guaranteeing high power and trouble-free operation. Its design, featuring a cardan shaft and two drums, ensures synchronized rope winding. An integrated brake allows for the immediate stopping of the mechanism in an emergency, providing full control and safety.
(highlighted in turquoise)

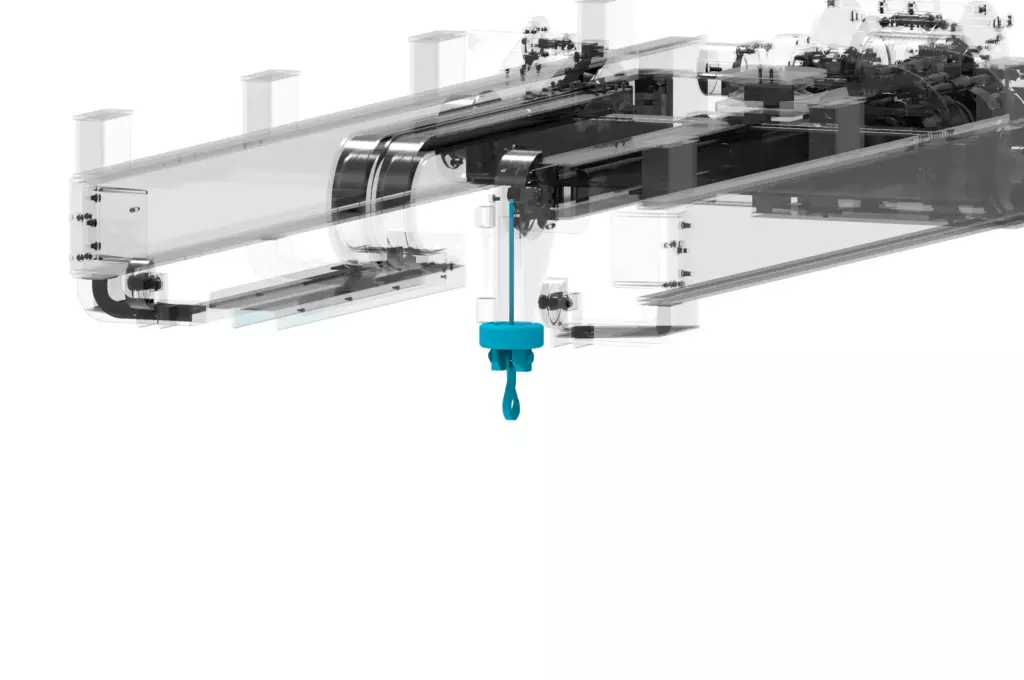

The hook block is equipped with a self-locking swivel and a hoisting limit switch at the boom tip, ensuring precise rope winding and stable operation. The design is rated for an 11.5 mm diameter wire rope and guarantees reliable lifting of loads up to 650 kg.
(highlighted in turquoise)

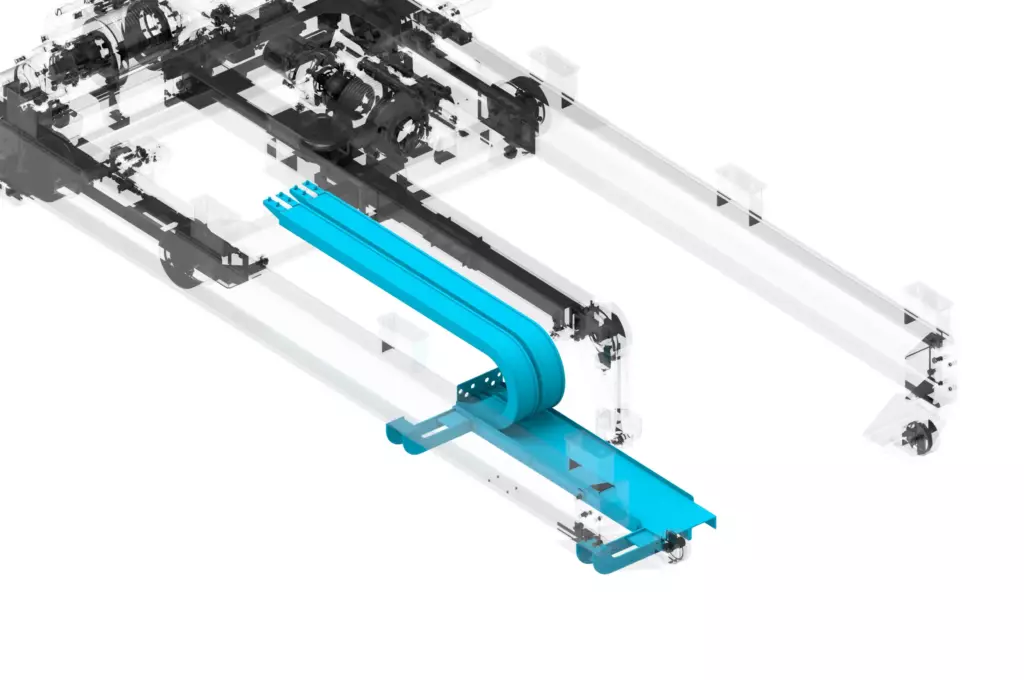

The cable chain ensures an uninterrupted power supply to the equipment on the carriage. Its design eliminates cable friction and twisting, which guarantees system durability as well as ease of installation and maintenance.
(highlighted in turquoise)

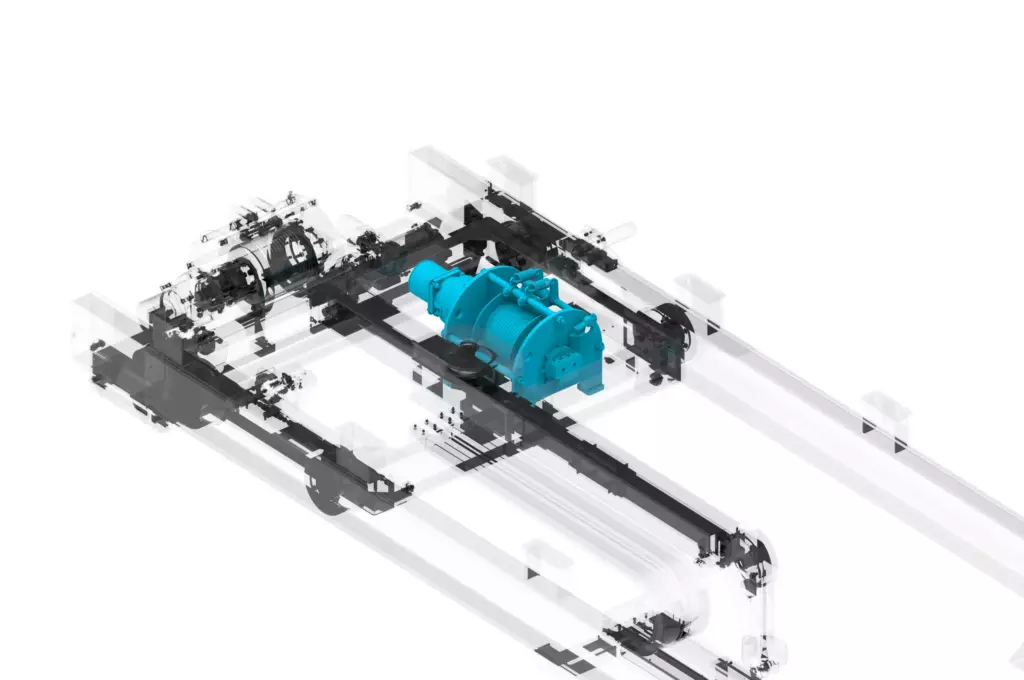

The hoisting winch, located on the crane carriage, is designed to work with an 11.5 mm diameter wire rope and has a drum capacity of 10 meters. It is equipped with a pressure roller that prevents rope twisting on the drum, ensuring the reliability and stability of the entire system.
The following documentation provided with the LARS:
| Document | Quantity |
|---|---|
| Product Data Sheet | 1 |
| Installation, Commissioning, and Adjustment Manual | 1 |
| Onboard Test Program and Methodology | 1 |
| Factory Acceptance Test (FAT) Report | 1 |
| Spare Parts and Tools List | 1 |
This launching and recovery system is available both as a standalone unit and as a complete set with specific hull closures of our manufacture.
The following are all variations of shell doors supplied in combination with this LARS:
Model 8.5X2.5M is a rectangular single-leaf shell door featuring an integrated accommodation ladder and steps for water access. Its design ensures secure attachment to the vessel’s hull and comes equipped with removable railings that can be easily installed by personnel to guarantee passenger safety.
A New Perspective on Routine Tasks
Imagine a vessel ready to set sail, with watercraft being launched into the water without any fuss and with maximum precision. There is no need for complex maneuvers or an entire team—just a reliable mechanism that handles everything accurately and safely. This is exactly what the single-beam overhead LARS was designed for.
This system is a direct response to shipowners’ demands: to simplify maintenance, enhance safety, and reduce preparation time for water operations. The simplicity of the design is combined with high-tech engineering, while operation requires no specialized skills.
The single-beam overhead LARS is a modern launching and recovery system installed on various types of vessels. Its single-beam design makes the system compact, reliable, and easy to maintain.
The equipment is engineered to perform the rapid and safe launching and recovery of boats or tenders, even in unfavorable weather conditions. All controls are concentrated in a user-friendly console, eliminating unnecessary actions and reducing the risk of errors.
The primary advantage is stable operation combined with ease of use. However, the benefits do not stop there. The single-beam overhead LARS:
For shipowners, this translates to less downtime, fewer risks, and greater confidence in every operation.
The single-beam overhead LARS is manufactured by Izhora Hydraulic Systems LLC (i-Hydro). We specialize in marine equipment developed in accordance with modern safety and operational convenience standards.
Every unit undergoes quality control to guarantee stable equipment performance across a wide range of conditions.
Reliable boat launching and recovery systems are more than just a convenience. They are a component upon which the safety and efficiency of shipping directly depend.
The single-beam overhead LARS is an example of how a clever engineering solution can change the approach to routine tasks. Its compactness, reliability, and simple controls make it an indispensable asset onboard.
| Parameter | Value |
|---|---|
| Lifting capacity at maximum outreach | 650 kg |
| Hoisting/lowering height, m, not less than | 4.5 m |
| Maximum boom outreach, m, not less than | 2.6 m |
| Maximum outboard outreach, m, not less than | 1.4 m |
| Hoisting/lowering speed, m/min, not less than | 18 m/min |
| Total weight of LARS equipment, kg, not more than | 1075 kg |
| Operating hydraulic pressure, MPa, not more than | 16 MPa |
| Operating temperature range, °C | -30° to +36° |
The equipment complies with the following requirements:
